Ordered Treemap Layouts


Informationsvisualiesierung, SS 2003

by

Thomas Rongitsch (e9825730@stud3.tuwien.ac.at)

Robert Liebo (robert@fuckingdesign.com)



dowload source

view application

Technical Documentation


Introduction

Task

Images


Introduction



Within the scope of the VU Informationsvisualiesierung at the ICGA we implemented a tool for visualizing ordered treemaps. The algorithms we use in our application base on the paper "Ordered Treemap Layouts" by Ben Shneiderman and Martin Wattenberg.



The Task was ...



1) ... to render treemaps

2) ... compare the layouts

3) ... to add some interaction

4) ... to see what happens if data change

5) ... to achieve significant images



Images



Below you can see some sample images genrated by our application. Due to demonstration issues we have tried to vary the parameters as much as possible.

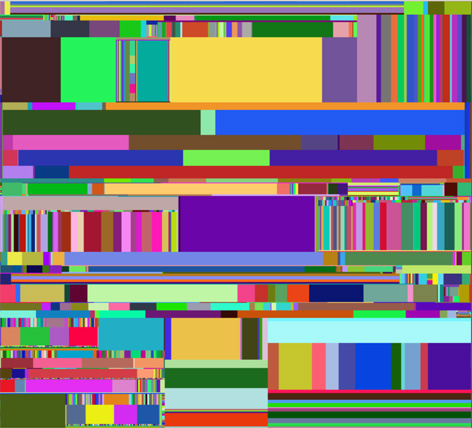

Method: Slice And Dice
Color: Random
Timestep 1



Method: Slice And Dice
Color: Random
Timestep 2

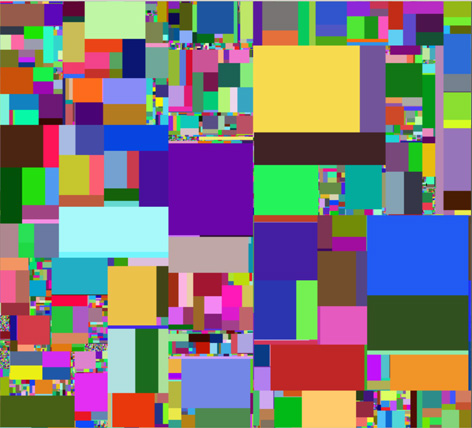

Method: Pivot By Middle
Color: Random
Timestep 1

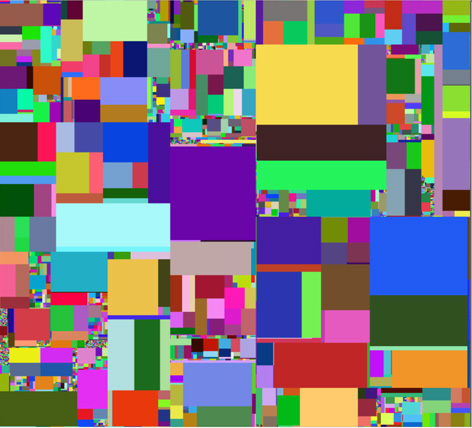

Method: Pivot By Middle
Color: Random
Timestep 2

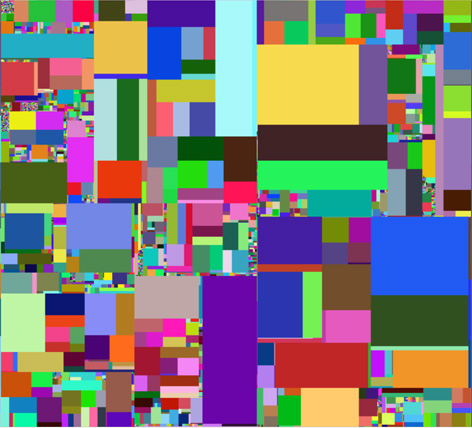

Method: Pivot By Size
Color: Random
Timestep 1

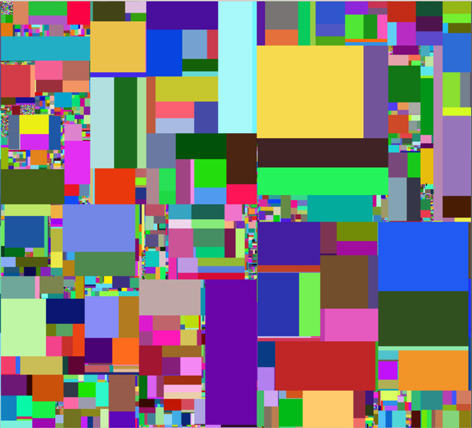

Method: Pivot By Size
Color: Random
Timestep 2

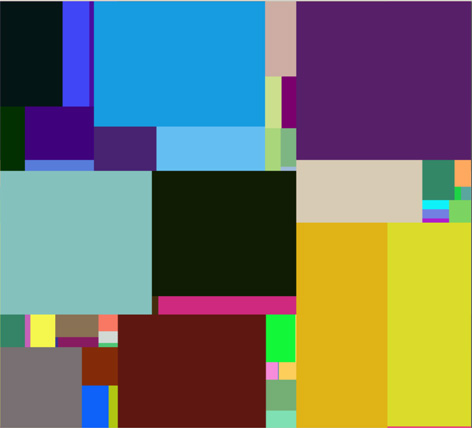

Method: Pivot By Size
Color: Random
Hierarchy 1

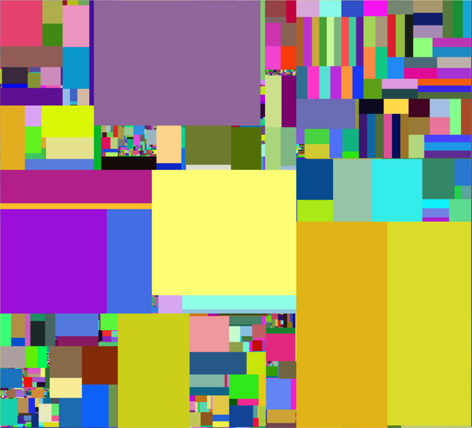

Method: Pivot By Size
Color: Random
Hierarchy 4



Method: Pivot By Size

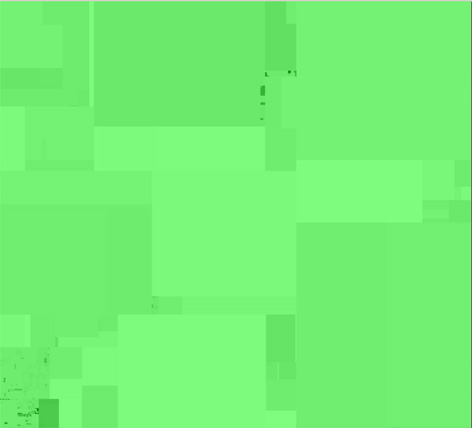

Color: Creation

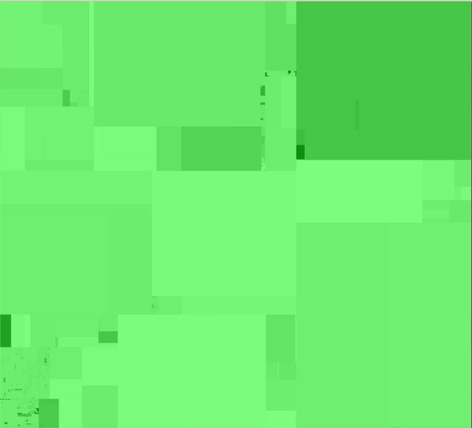

Method: Pivot By Size
Color: Last Modified

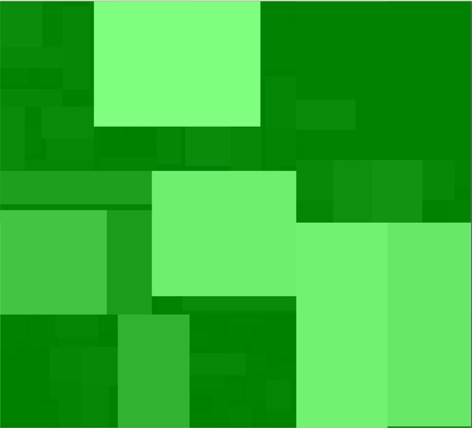

Method: Pivot By Size
Color: Size



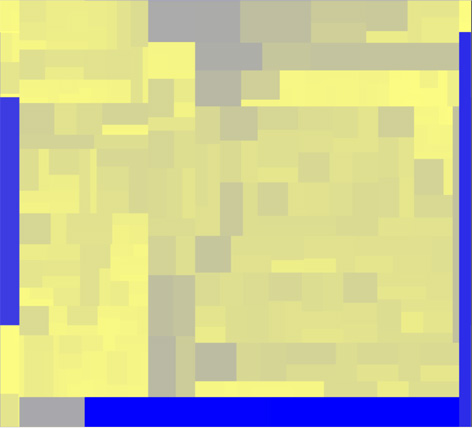

Method: Pivot By Middle
Color: Size
