Volume Rendering images
Rotation: Z 45
Skin Opacity: 0.03
Front View
Skin Opacity: 0.1
Rotation: X 0 Y -12 Z 90
Skin Opacity: 0.05
Rotation: X 0 Y -10 Z 90
Skin Opacity: 0.05
with highlight option on
Rotation: X 0 Y -10 Z 90
Skin Opacity: 0.02
Bone Opacity: 0.10
with highlight option on
Rotation: X 0 Y -10 Z 90
Skin Opacity: 0.50
with highlight option on
Test images
These images were made during development. Some images may show views, which are cannot be achieved with the current app. version; some images contain errors.
Rotation: Z
opacity transfer function acc. to gradients
Rotation: Z
Skin Opacity: 0.03
opacities not considering gradients
Rotation: X + Z
Skin Opacity: 0.03
opacities not considering gradients
Rotation: X + Z
Skin Opacity: 0.03
opacities not considering gradients
trilinear Interpolation
Shading
Shading with Skin threshold (~ 420)
Shading with Skin threshold
(~ 420)
Rotation: Z 45
Highlight option on
Front view
Highlight option on
Rotation: Z 45
no highlight
Rotation: Z 45
Highlight option on (highlight exponent: 16)
Rotation: Z 45
Highlight option on (highlight exponent: 128)
Rotation: X -18 Y -30 Z 100

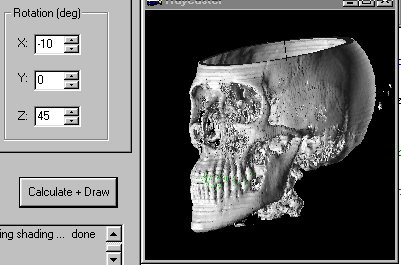

Test image: light vector was kept in front of the head

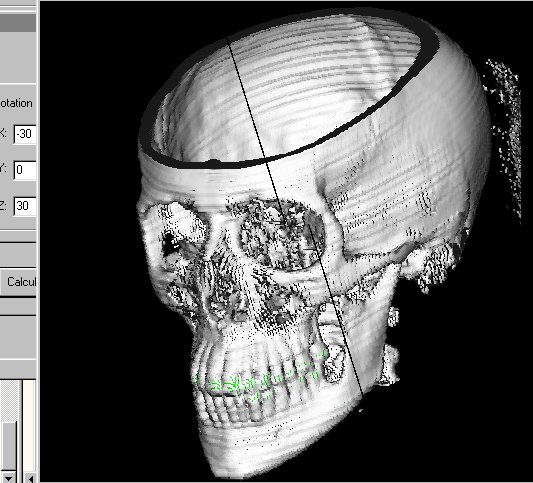

Test image: shading of a large image
(with nearest neighbour interpolation)
(black lines were due to an data array range problem)
X-Ray images
X-ray image from right
(Rotation: Z 90)
Slices
Slice along the X-axis
(left to right)
Slice along the Y-axis
(front to back)
Slice along the Z-axis
(top to bottom)
Slice along the Z-axis
with range colors on
