Technical Documentation


LU Visualisierung - Beispiel 2, WS 2002/2003

by

Thomas Rongitsch (e9825730@stud3.tuwien.ac.at)

Fabian Bendix (s9825733@stud3.tuwien.ac.at)



Home

dowload source

view program


Class Overview

CVisDlg

COpenGL

CData

CImageRenderer

CStreamLine

CTexture

CPanel

CTransferDlg

CTransferFunction

CFileReader

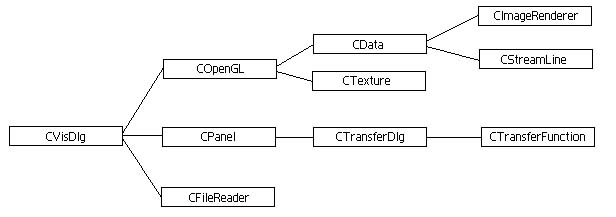

Class OverView





CVisDlg

CVisDlg is the main Window of this application. It provides pointers to COpenGL (the rendering window), to the panel on the right side of the application and to some other common window controls (e.g. status bar, menu, ...). The whole communication between the controls and the application-logic is transferred (indirectely) over CVisDlg.

COpenGL

COpenGL is inherited from CWnd and provides the drawing routines. This class even holds the very important CData object, which is a private member and can only be accessed by COpenGL.
All necessary environment variables are first controlled in COpenGL, before they are submitted to CData and further processed (rendered).

CData

CData is the main interface for rendering. The most important settings for Arrowplots and Streamlines are stored in this object. Before anything can be rendered - explicitely by calling CData::render() - the environment for the rendering method(s) must be set. Depending on the type of rendering CData::setDTest(...), CData::setDSep, ... must be called. Subsequent calls of this methods will override former calls.

CImageRenderer

CImageRenderer is the "rendering-engine" of the application. Arrow plots are directly calculated within this class. For streamline calculations another class is needed - CStreamLine (see below).

CStreamLine

This class provides the functionality for calulating and storing streamlines in arbitary ways. Some of the most important issues might be: Euler intgration, Runge Kutta 2 integration, various types of determining (interpolating) the neighbour of a node, ...

CTexture

This class is needed by COpenGL for loading the textures (textured Arrowplot).

CPanel

CPanel provides the functionality for the User Interaction. In other words it implements the GUI.

CTransferDlg

CTranferDlg provides GUI-functionality for adjusting, loading, saving and modifying the Transferfunction.

CTransferFunction

This class provides the logic behind CTransferDlg. All important parameters are stored here, and can be accessed from here.

CFileReader

This class is called by CVisDlg (the main window) when a new file should be loaded. The three dimensional array of data is then passed to CData.
