Daniel Patel, Christopher Giertsen, John Thurmond, Eduard GröllerORCID iD
Illustrative rendering of seismic data
TR-186-2-07-08, May 2007 [Ill. rendering of seismic data]

Information

  • Publication Type: Technical Report
  • Workgroup(s)/Project(s):
  • Date: May 2007
  • Number: TR-186-2-07-08
  • Keywords: Seismic illustration, Texture transfer function, Texture mapping

Abstract

We present multi attribute texture transfer functions for the generation of seismic illustrations. We render seismic data in the style of geological textbook illustrations by combining illustratively rendered axis aligned slices with volume rendering. We have extended the transfer function concept to map volume attributes to 2D textures that flow according to a deformation volume describing the buckling and discontinuites of the layers of the seismic data. Faults in the seismic layers are represented by texture disruptions.

Additional Files and Images

Additional images and videos


Additional files

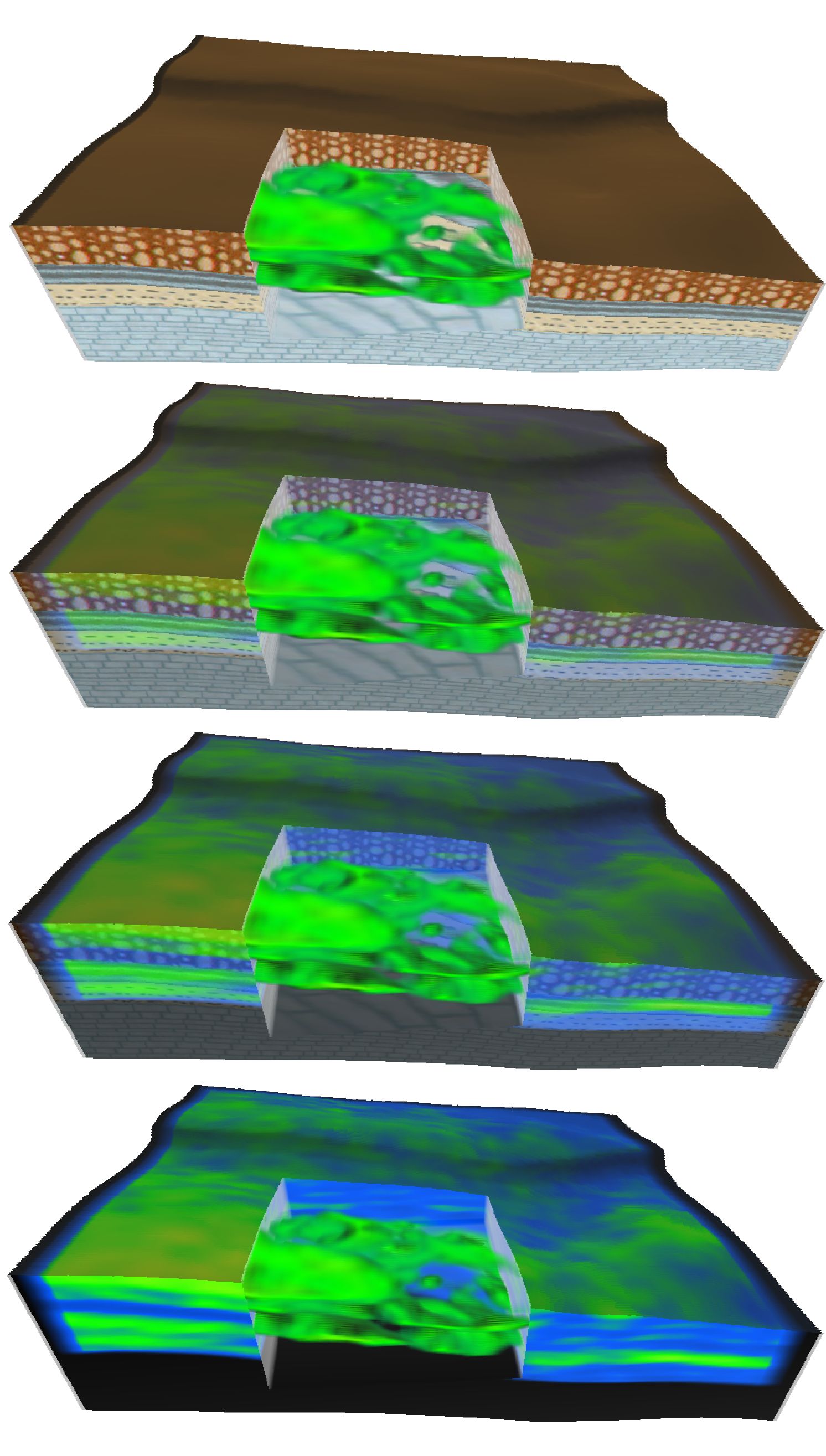

Ill. rendering of seismic data: Techniques for rendering seismic data in the style of geological illustrations are investigated Ill. rendering of seismic data: Techniques for rendering seismic data in the style of geological illustrations are investigated
