Gabriel Mistelbauer, Andrej Varchola, Hamed Bouzari, Juraj Starinsky, Arnold Köchl, Rüdiger Schernthaner, Dominik Fleischmann, Eduard GröllerORCID iD, Miloš Šrámek
Centerline Reformations of Complex Vascular Structures
In Pacific Visualization Symposium (PacificVis), 2012 IEEE, pages 233-240. 2012.

Information

Abstract

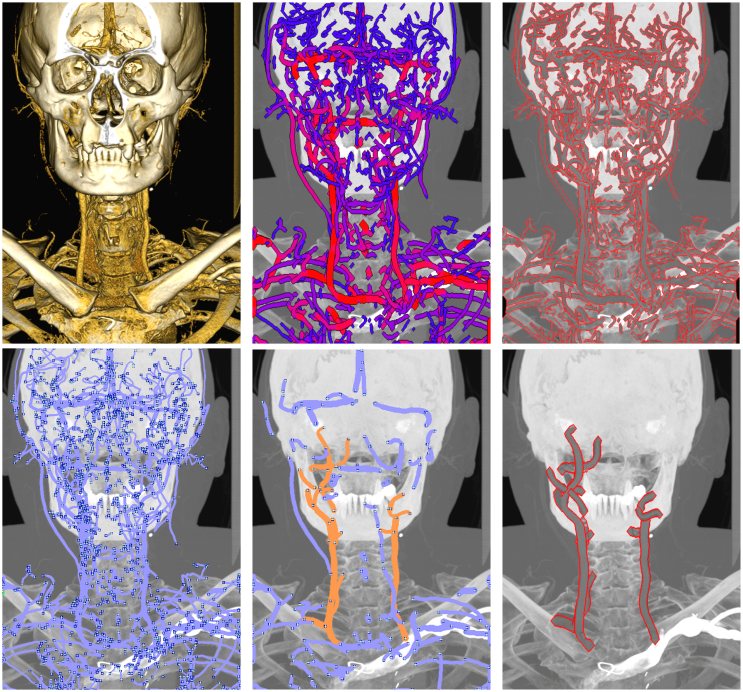

Visualization of vascular structures is a common and frequently performed task in the field of medical imaging. There exist well established and applicable methods such as Maximum Intensity Projection (MIP) and Curved Planar Reformation (CPR). However, when calcified vessel walls are investigated, occlusion hinders exploration of the vessel interior with MIP. In contrast, CPR offers the possibility to visualize the vessel lumen by cutting a single vessel along its centerline. Extending the idea of CPR, we propose a novel technique, called Centerline Reformation (CR), which is capable of visualizing the lumen of spatially arbitrarily oriented vessels not necessarily connected in a tree structure. In order to visually emphasize depth, overlap and occlusion, halos can optionally envelope the vessel lumen. The required vessel centerlines are obtained from volumetric data by performing a scale-space based feature extraction. We present the application of the proposed technique in a focus and context setup. Further, we demonstrate how it facilitates the investigation of dense vascular structures, particularly cervical vessels or vessel data featuring peripheral arterial occlusive diseases or pulmonary embolisms. Finally, feedback from domain experts is given.

Additional Files and Images

Additional images and videos

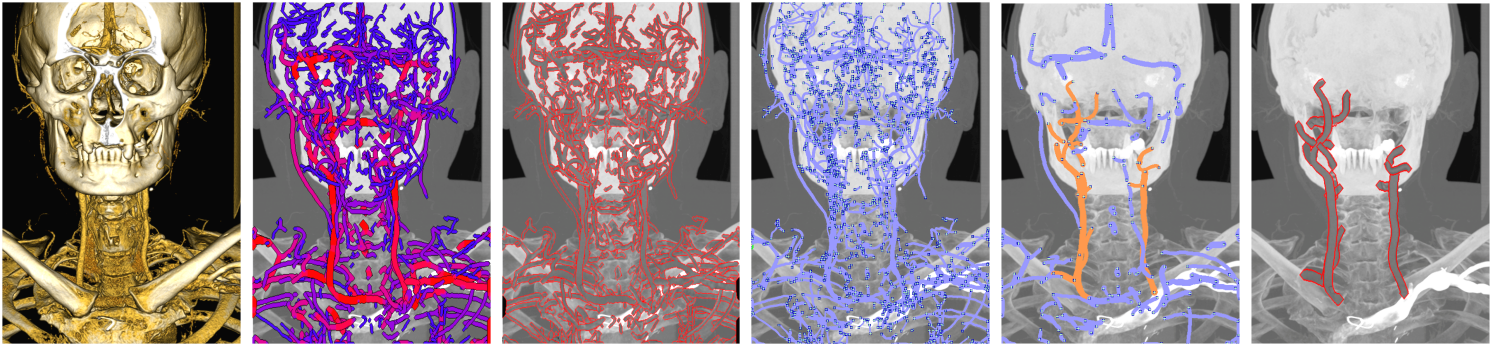

teaser: Teaser image. teaser: Teaser image.
