AR Overlays for Leica VIS with Vulkan

Information

• Publication Type: Student Project
• Workgroup(s)/Project(s):
  • Rendering and Modeling
• Date: 2018
• Date (Start): 13. June 2018
• Date (End): 29. October 2018
• Matrikelnummer: 1576033
• First Supervisor: Michael Wimmer

Abstract

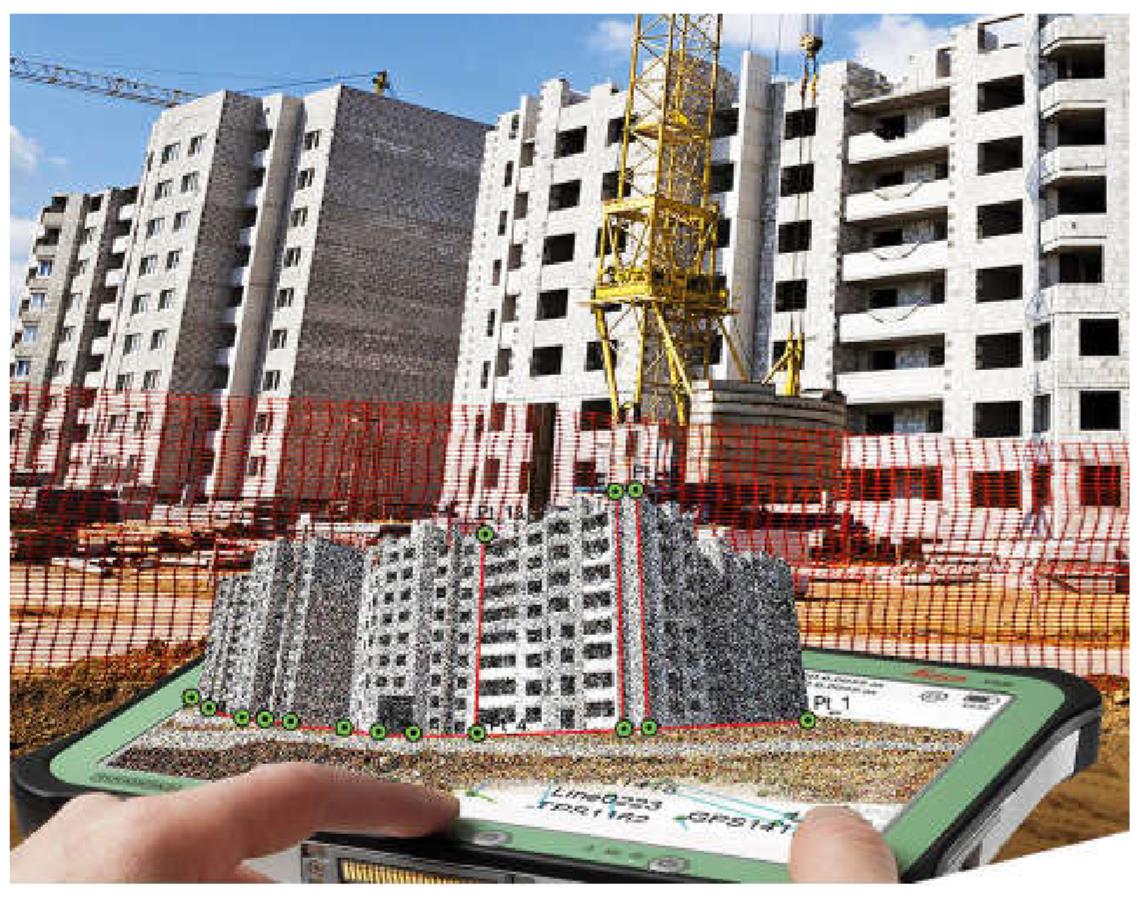

Using the existing Visual Inertial System (VIS) for pose estimation, BIM (Building Information Management) information is displayed using Augmented Reality technology. Specific usecases, for example, stakeout or CAD previews are implemented to demonstrate the advantages of such overlays. The focus of the implementation is on creating a correct representation of the physical camera in the virtual scene and render objects on top of the incoming video stream of the device. For a good AR experience the objects should be distorted according to the camera’s distortion model and be occluded correctly with the environment.

Additional Files and Images

Weblinks

No further information available.

BibTeX

@studentproject{GANTNER-2018-ARO,
  title =      "AR Overlays for Leica VIS with Vulkan",
  author =     "Patrick Gantner",
  year =       "2018",
  abstract =   "Using the existing Visual Inertial System (VIS) for pose
               estimation, BIM (Building Information Management)
               information is displayed using Augmented Reality technology.
               Specific usecases, for example, stakeout or CAD previews are
               implemented to demonstrate the advantages of such overlays.
               The focus of the implementation is on creating a correct
               representation of the physical camera in the virtual scene
               and render objects on top of the incoming video stream of
               the device. For a good AR experience the objects should be
               distorted according to the camera’s distortion model and
               be occluded correctly with the environment.",
