StARboard & TrACTOr: Actuated Tangibles in an Educational TAR Application

Information

• Publication Type: Journal Paper (without talk)
• Workgroup(s)/Project(s): not specified
• Date: February 2021
• DOI: 10.3390/mti5020006
• ISSN: 2414-4088
• Journal: Multimodal Technologies and Interaction
• Number: 2
• Open Access: yes
• Volume: 5
• Pages: 1 – 22
• Keywords: Tangible Augmented Reality; Tangible User Interface; tabletop interaction; robots; actuation; haptics

Abstract

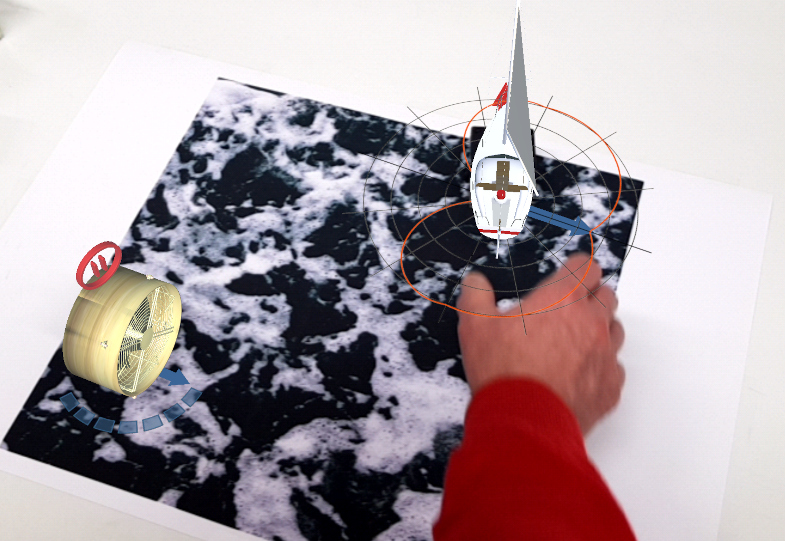

We explore the potential of direct haptic interaction in a novel approach to Tangible Augmented Reality in an educational context. Employing our prototyping platform ACTO, we developed a tabletop Augmented Reality application StARboard for sailing students. In this personal viewpoint environment virtual objects, e.g., sailing ships, are physically represented by actuated micro robots. These align with virtual objects, allowing direct physical interaction with the scene. When a user tries to pick up a virtual ship, its physical robot counterpart is grabbed instead. We also developed a tracking solution TrACTOr, employing a depth sensor to allow tracking independent of the table surface. In this paper we present concept and development of StARboard and TrACTOr. We report results of our user study with 18 participants using our prototype. They show that direct haptic interaction in tabletop AR scores en-par with traditional mouse interaction on a desktop setup in usability (mean SUS = 86.7 vs. 82.9) and performance (mean RTLX = 15.0 vs. 14.8), while outperforming the mouse in factors related to learning like presence (mean 6.0 vs 3.1) and absorption (mean 5.4 vs. 4.2). It was also rated the most fun (13× vs. 0×) and most suitable for learning (9× vs. 4×).

Additional Files and Images

Weblinks

• https://www.mdpi.com/2414-4088/5/2/6
• Entry in reposiTUm (TU Wien Publication Database)
• Entry in the publication database of TU-Wien
• DOI: 10.3390/mti5020006

BibTeX

@article{Vonach021,
  title =      "StARboard & TrACTOr: Actuated Tangibles in an Educational
               TAR Application",
  author =     "Emanuel Vonach and Christoph Schindler and Hannes Kaufmann",
  year =       "2021",
  abstract =   "We explore the potential of direct haptic interaction in a
               novel approach to Tangible Augmented Reality in an
               educational context. Employing our prototyping platform
               ACTO, we developed a tabletop Augmented Reality application
               StARboard for sailing students. In this personal viewpoint
               environment virtual objects, e.g., sailing ships, are
               physically represented by actuated micro robots. These align
               with virtual objects, allowing direct physical interaction
               with the scene. When a user tries to pick up a virtual ship,
               its physical robot counterpart is grabbed instead. We also
               developed a tracking solution TrACTOr, employing a depth
               sensor to allow tracking independent of the table surface.
               In this paper we present concept and development of
               StARboard and TrACTOr. We report results of our user study
               with 18 participants using our prototype. They show that
               direct haptic interaction in tabletop AR scores en-par with
               traditional mouse interaction on a desktop setup in
               usability (mean SUS = 86.7 vs. 82.9) and performance (mean
               RTLX = 15.0 vs. 14.8), while outperforming the mouse in
               factors related to learning like presence (mean 6.0 vs 3.1)
               and absorption (mean 5.4 vs. 4.2). It was also rated the
               most fun (13× vs. 0×) and most suitable for learning (9×
               vs. 4×).",
  month =      feb,
  doi =        "10.3390/mti5020006",
  issn =       "2414-4088",
  journal =    "Multimodal Technologies and Interaction",
  number =     "2",
  volume =     "5",
  pages =      "1--22",
  keywords =   "Tangible Augmented Reality; Tangible User Interface;
               tabletop interaction; robots; actuation; haptics",
  URL =        "https://www.cg.tuwien.ac.at/research/publications/2021/Vonach021/",
}
