Hierarchical Streamarrows for the Visualization of Dynamical Systems

by H. Löffelmann, L. Mroz, and E. Gröller.

Project Duration: 1996, April - 1997, March.

This page assembles some results of work that is part of our research topic ``Visualization of Complex Dynamical Systems''. The figures are provided in JPEG format.



____________________________________________________________________
header < paper > figures > more images > footer

Download the paper (.ps.gz)

EG ViSC '97 paper, final version.



____________________________________________________________________
header < paper < figures > more images > footer

Figures in the paper (JPEG)

[Fig. 1]Figure 1 (k):

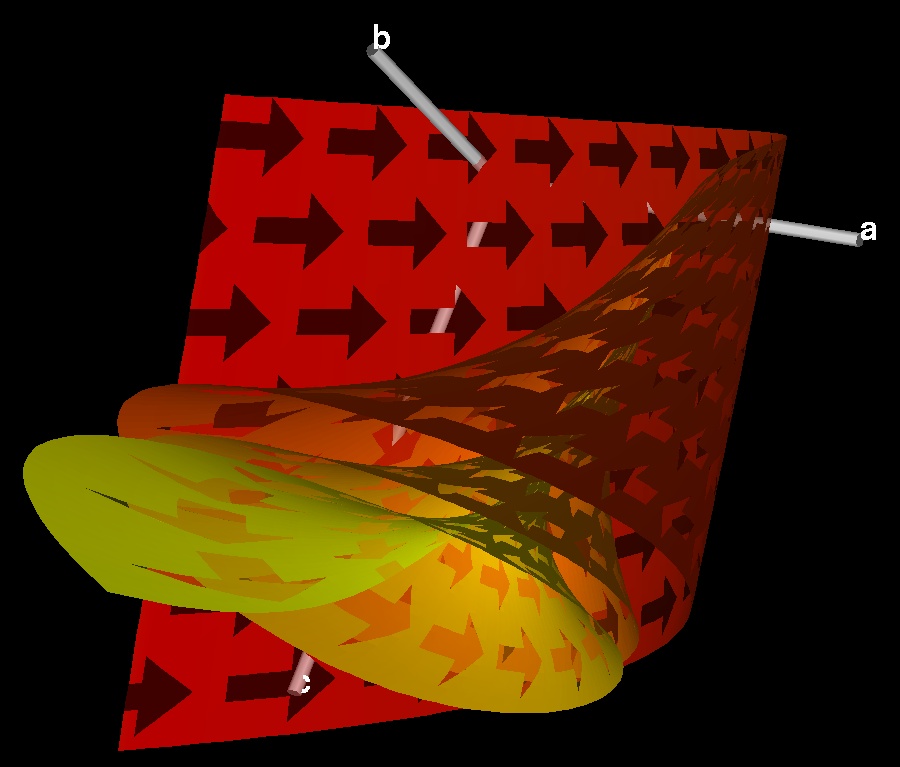

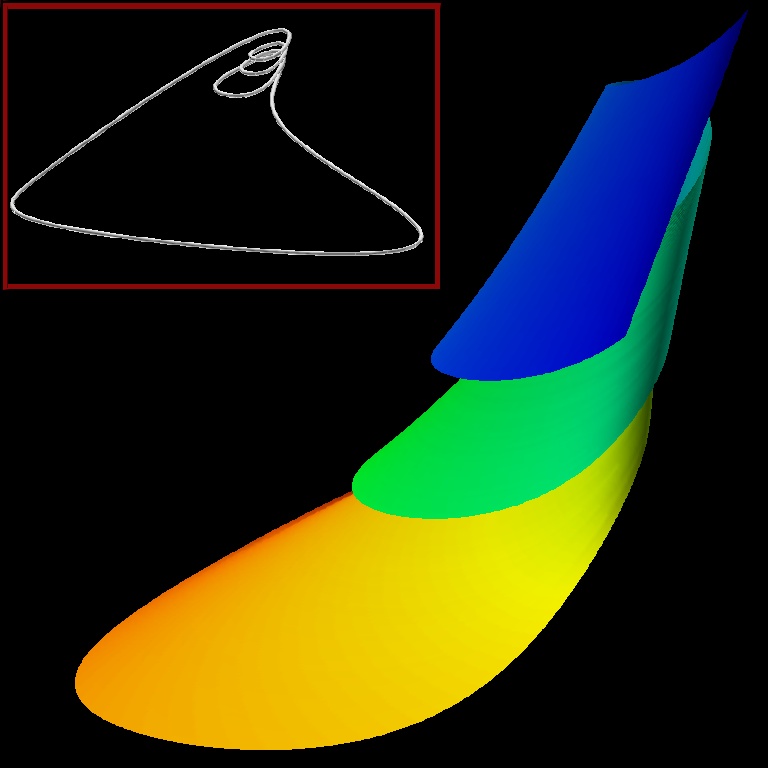

Streamsurface and streamline typical for mixed-mode oscillations.
[Fig. 2]Figure 2 (119k):
Streamarrows for mixed-mode oscillations.
[Fig. 3]Figure 3 (150k):

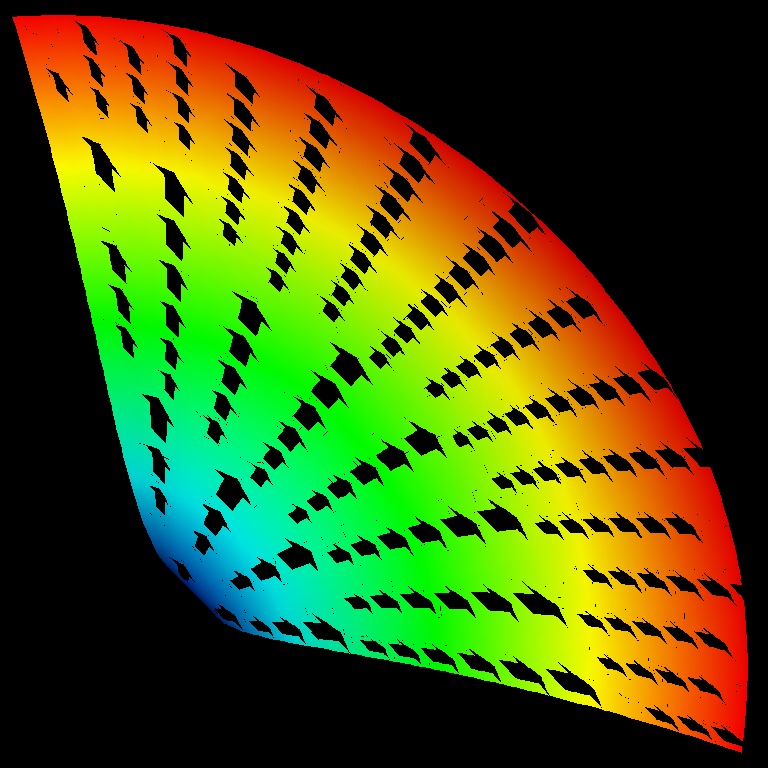

Hierarchical streamarrows, example 1.
[Fig. 4]Figure 4 (190k):

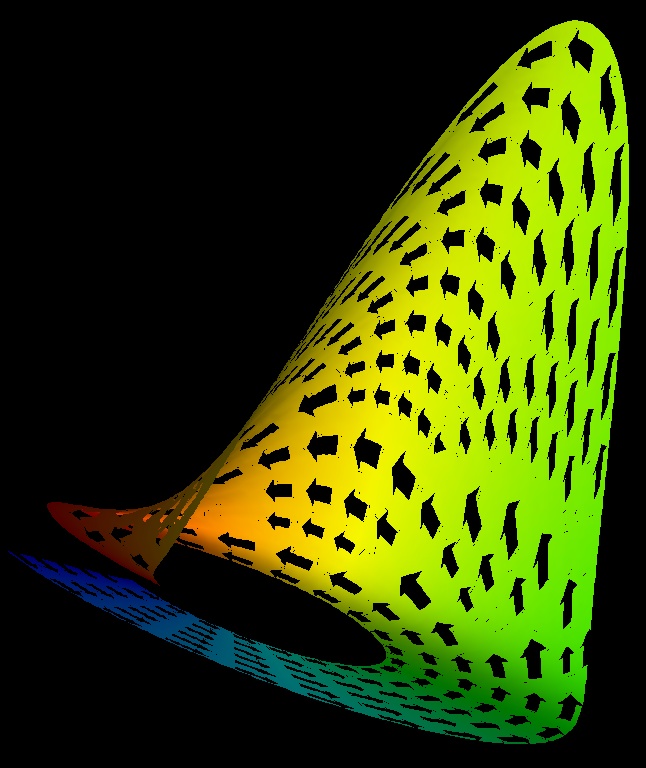

Hierarchical streamarrows, example 2.
[Fig. 5]Figure 5 (95k):

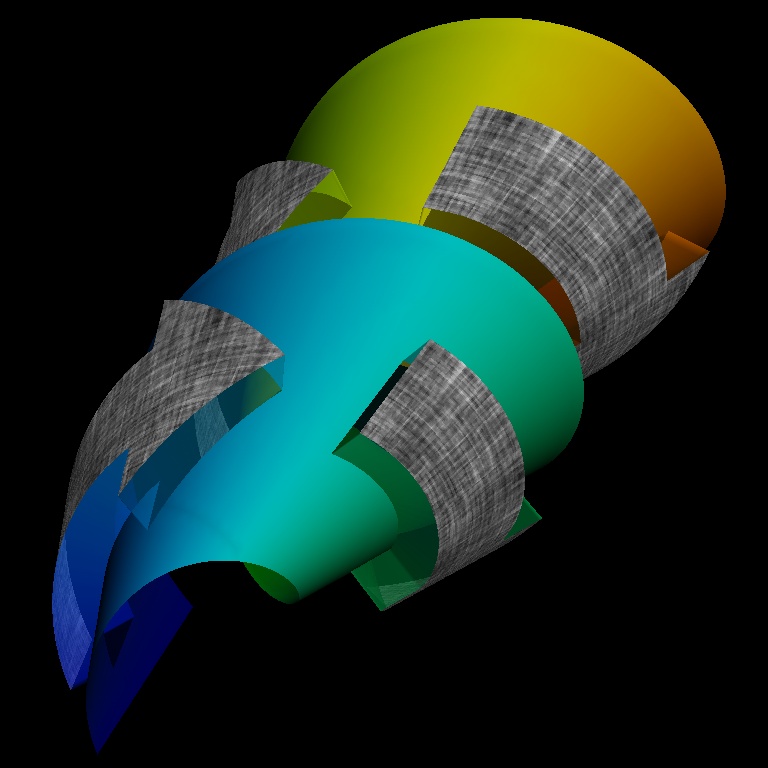

Streamarrows shifted out of the streamsurface plus anisotropic spot-noise.
[Fig. 6]Figure 6 (120k):

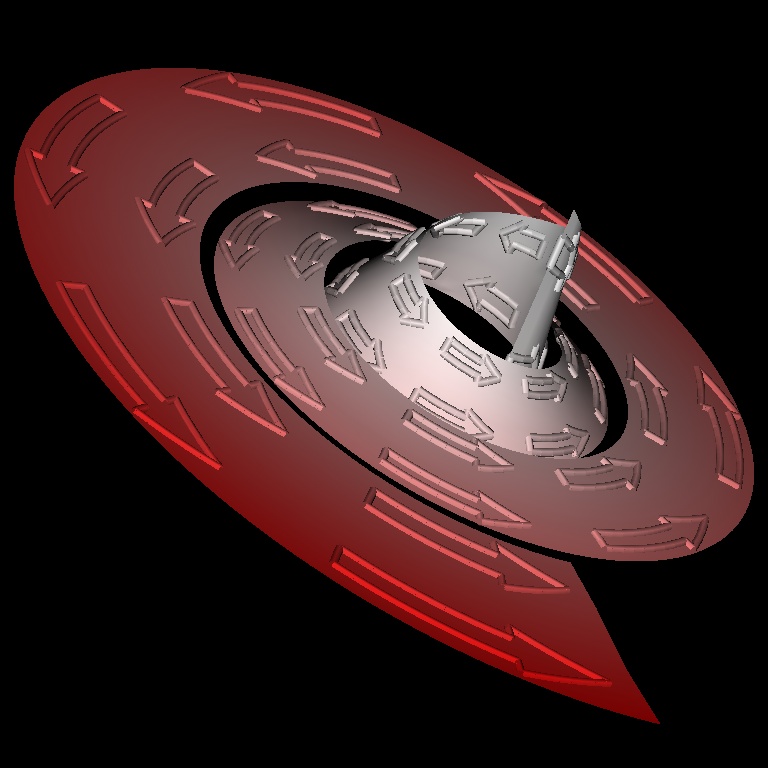

Streamarrows represented as 3D tubes plus color coding of velocity.
[Fig. 7]Figure 7 (84k):

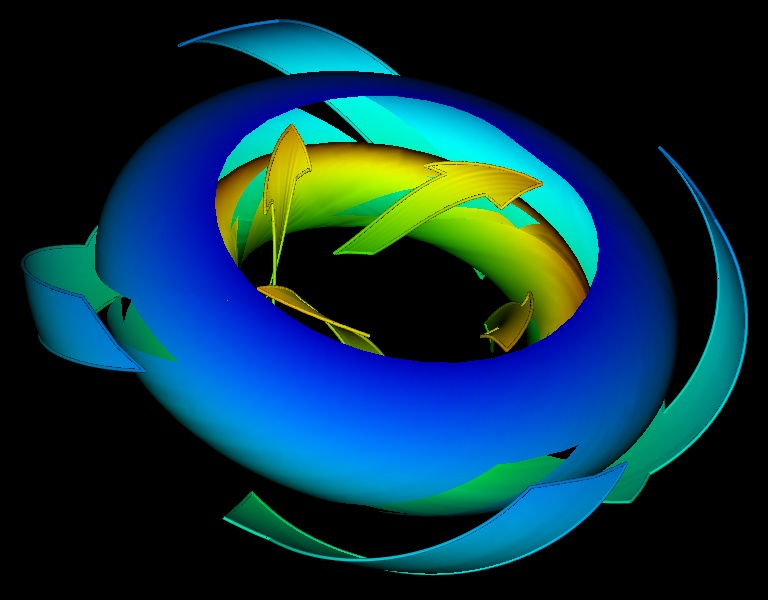

Streamarrows similar to hand-drawings by Abraham and Shaw.



____________________________________________________________________
header < paper < figures < more images > footer

More Images (JPEG)

[Image 1]Image 1 (146k):

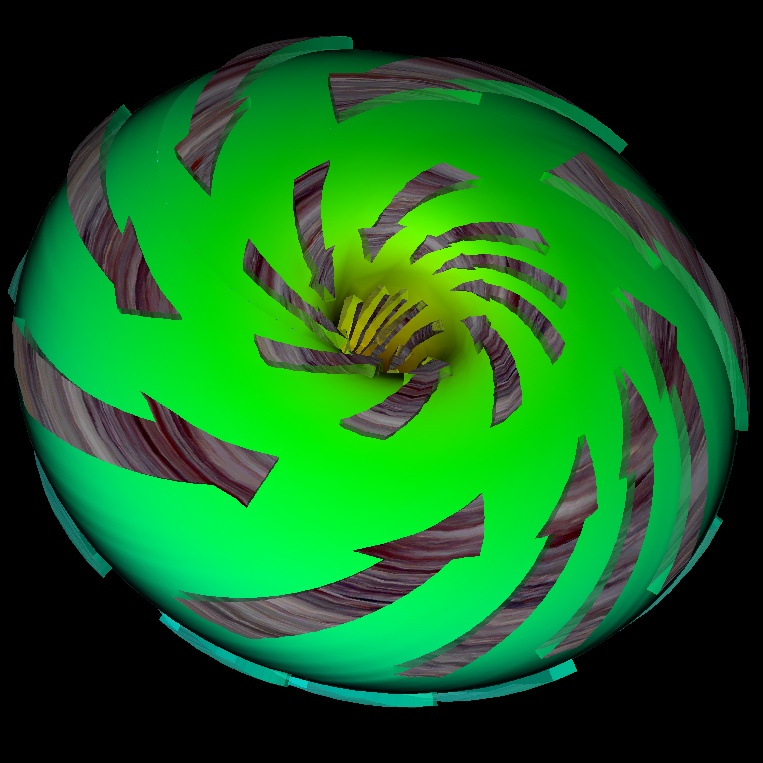

Another image showing a torus-like streamsurface with streamarrows.
[Image 2]Image 2 (26k):
Streamsurface plus streamarrows.



____________________________________________________________________
header < paper < figures < more images < footer

Helwig Löffelmann, last update on April 9, 1997.
