A Guided Tour to Wonderland: Visualizing the Slow-Fast Dynamics of an Analytical Dynamical System

by Rainer Wegenkittl, Eduard Gröller and Werner Purgathofer

Institute of Computer Graphics, Technical University of Vienna

project duration: 1994-1996

This page assembles the results (images and animations) of a current project on the visualization of an oeconometric model. You can get a gnu-zipped postscript version of a paper on the subject (without the color plates). The color plates consist of the following pictures (Click onto the thumbnails to get a 500x400 pixel image):

Plate 1&2:

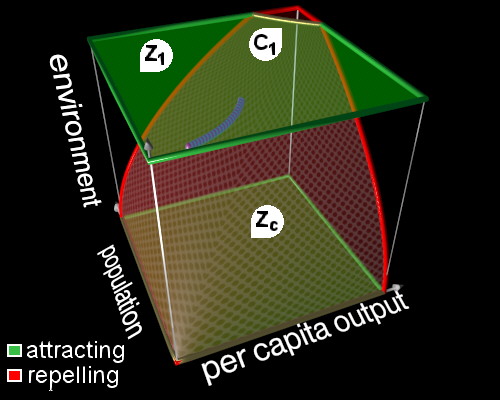

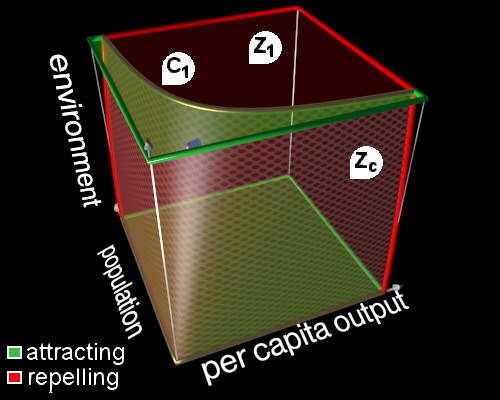

These two plates show a typical evolution of a trajectory within the Dream Scenario.

Plate 3&4:

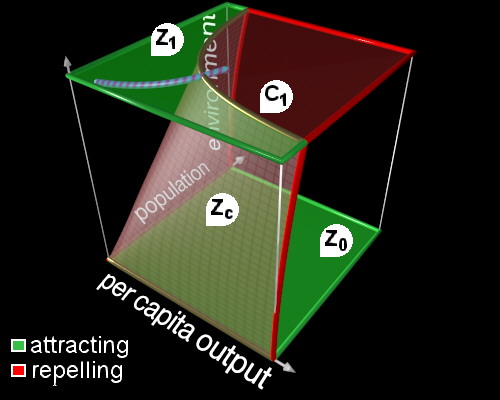

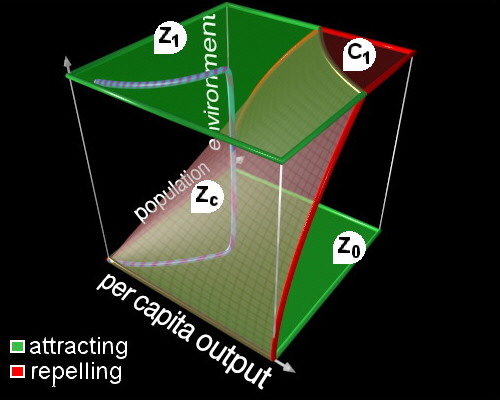

These two plates show a typical evolution of a trajectory within the Horror Scenario.

---

Plate 5&6:

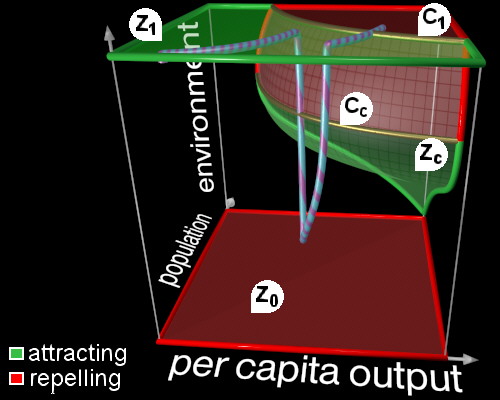

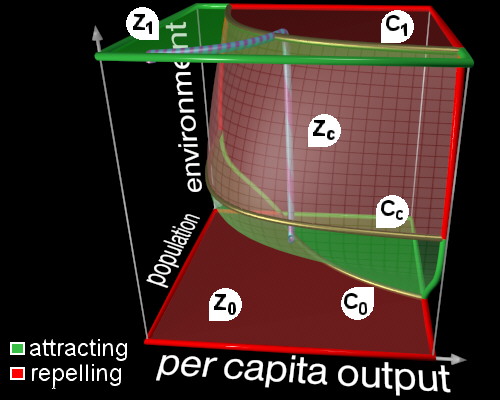

These two plates show a typical evolution of a trajectory within the EscapeScenario.

Animations:

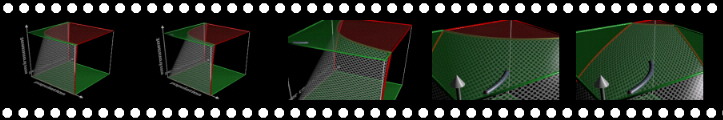

This is an animation showing the Dream Scenario. Click here for an MPEG file (562KB).

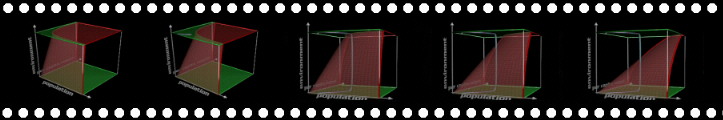

This is an animation showing the Horror Scenario. Click here for an MPEG file (355KB).

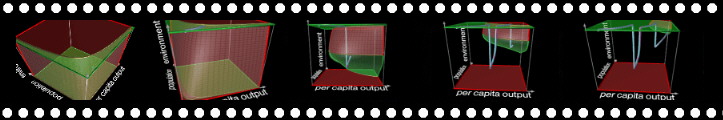

This is an animation showing the Escape Scenario. Click here for an MPEG file (600KB).

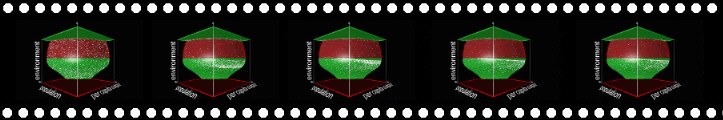

This is an animation using a Particle System. Click here for an MPEG file (1534KB).

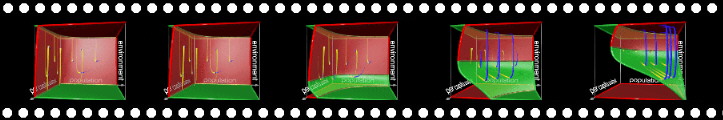

This is an animation showing nine tufts within the Escape Scenario. Click here for an MPEG file (547KB).
