#include <vtkCatmullClarkFilter.h>
Public Member Functions | |
| vtkTypeMacro (vtkCatmullClarkFilter, vtkApproximatingSubdivisionFilter) | |
Static Public Member Functions | |
| vtkCatmullClarkFilter * | New () |
Protected Member Functions | |
| vtkCatmullClarkFilter () | |
| ~vtkCatmullClarkFilter () | |
| virtual void | Execute (void) |
| void | insertEdgePoint (CellData &cell, EdgePoint *newElement) |
| EdgePoint * | findEdgePoint (CellData &cell, vtkIdType id1, vtkIdType id2) |
| void | insertVertexPoint (CellData &cell, VertexPoint *newElement) |
| VertexPoint * | findVertexPoint (CellData &cell, vtkIdType id) |
| void | computeFacePoint (vtkCell *cell, float *facePoint) |
| vtkIdList * | getNeighborIds (vtkPolyData *input, vtkIdType i) |
| void | Subdivision (vtkPolyData *input, vtkPolyData *output) |
| void | GenerateSubdivisionPoints (vtkPolyData *inputDS, vtkIntArray *edgeData, vtkPoints *outputPts, vtkPointData *outputPD) |
Private Member Functions | |
| vtkCatmullClarkFilter (const vtkCatmullClarkFilter &) | |
| void | operator= (const vtkCatmullClarkFilter &) |
|
|
Definition at line 85 of file vtkCatmullClarkFilter.h.
00085 {};
|
|
|
Definition at line 86 of file vtkCatmullClarkFilter.h.
00086 {};
|
|
|
|
|
||||||||||||
|
Definition at line 98 of file vtkCatmullClarkFilter.cpp. Referenced by Subdivision().
00098 {
00099 facePoint[0] = 0.0f;
00100 facePoint[1] = 0.0f;
00101 facePoint[2] = 0.0f;
00102 vtkPoints *points = cell->GetPoints();
00103 int cpoints = cell->GetNumberOfPoints();
00104 for (int i = 0; i < cpoints; ++i) {
00105 float *current = points->GetPoint(i);
00106 facePoint[0] += (current[0] / cpoints);
00107 facePoint[1] += (current[1] / cpoints);
00108 facePoint[2] += (current[2] / cpoints);
00109 }
00110 }
|
|
|
Definition at line 358 of file vtkCatmullClarkFilter.cpp. References Subdivision().
00358 {
00359
00360 vtkPolyData *input;
00361 vtkPolyData *output;
00362 vtkPolyData *intermediate;
00363
00364 int subdivisions = GetNumberOfSubdivisions();
00365
00366 if (subdivisions == 0) {
00367 // No subdivision
00368 } else if (subdivisions == 1) {
00369 input = GetInput();
00370 output = GetOutput();
00371 Subdivision(input, output);
00372 } else for(int i = 0; i < subdivisions; ++i) {
00373 if (i == 0) {
00374 input = GetInput();
00375 intermediate = vtkPolyData::New();
00376 Subdivision(input, intermediate);
00377 } else if (i < subdivisions-1) {
00378 input->Delete();
00379 input = intermediate;
00380 intermediate = vtkPolyData::New();
00381 Subdivision(input, intermediate);
00382 } else {
00383 input->Delete();
00384 input = intermediate;
00385 output = GetOutput();
00386 Subdivision(intermediate, output);
00387 }
00388 }
00389 }
|

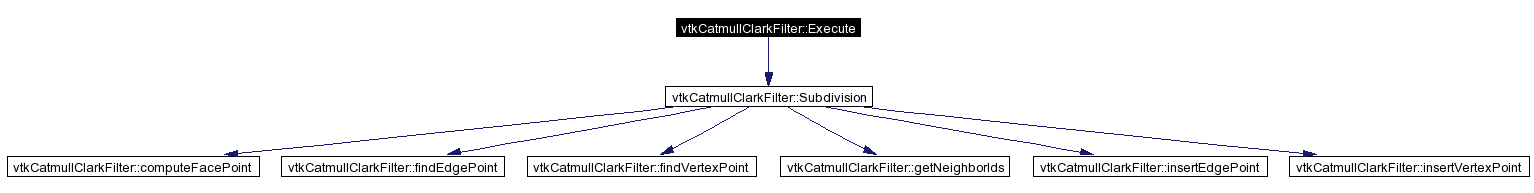

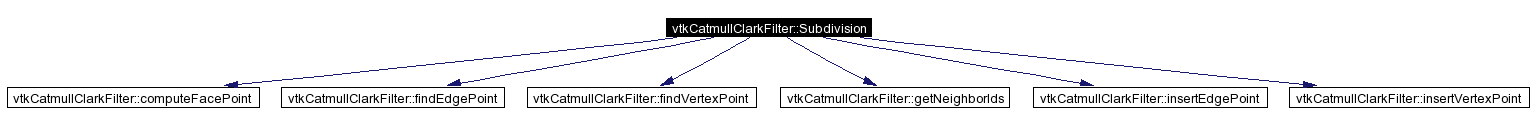

Here is the call graph for this function:
|
||||||||||||||||
|
Definition at line 66 of file vtkCatmullClarkFilter.cpp. References CellData::edgePoints, EdgePoint::next, EdgePoint::p1, and EdgePoint::p2. Referenced by Subdivision().
00066 {
00067 EdgePoint *result = cell.edgePoints;
00068 bool found = false;
00069 while((result != NULL) && (found == false)) {
00070 if (((result->p1 == id1) && (result->p2 == id2)) ||
00071 ((result->p1 == id2) && (result->p2 == id1))) { // found edge
00072 found = true;
00073 } else {
00074 result = result->next;
00075 }
00076 }
00077 return result;
00078 }
|
|
||||||||||||
|
Definition at line 85 of file vtkCatmullClarkFilter.cpp. References VertexPoint::next, VertexPoint::v_old, and CellData::vertexPoints. Referenced by Subdivision().
00085 {
00086 VertexPoint *result = cell.vertexPoints;
00087 bool found = false;
00088 while((result != NULL) && (found == false)) {
00089 if (result->v_old == id) { // found vertex
00090 found = true;
00091 } else {
00092 result = result->next;
00093 }
00094 }
00095 return result;
00096 }
|
|
||||||||||||||||||||
|
Definition at line 392 of file vtkCatmullClarkFilter.cpp.
00393 {
00394 }
|
|
||||||||||||
|
Definition at line 112 of file vtkCatmullClarkFilter.cpp. Referenced by Subdivision().
00112 {
00113 vtkIdList *neighbors = vtkIdList::New();
00114
00115 vtkIdList *neighborCells = vtkIdList::New();
00116 input->GetPointCells(i, neighborCells);
00117 for (int j = 0; j < neighborCells->GetNumberOfIds(); ++j) {
00118
00119 vtkIdList *cellPoints = vtkIdList::New();
00120 input->GetCellPoints(neighborCells->GetId(j), cellPoints);
00121 int cpoints = cellPoints->GetNumberOfIds();
00122 for (int k = 0; k < cpoints; ++k) {
00123
00124 vtkIdType ptId1 = cellPoints->GetId(k);
00125 vtkIdType ptId2 = cellPoints->GetId((k+1) % cpoints);
00126
00127 if (i == ptId1) {
00128 if (neighbors->IsId(ptId2) < 0) {
00129 neighbors->InsertNextId(ptId2);
00130 }
00131 }
00132 if (i == ptId2) {
00133 if (neighbors->IsId(ptId1) < 0) {
00134 neighbors->InsertNextId(ptId1);
00135 }
00136 }
00137 }
00138 }
00139 return neighbors;
00140 }
|
|
||||||||||||
|
Definition at line 61 of file vtkCatmullClarkFilter.cpp. References CellData::edgePoints, and EdgePoint::next. Referenced by Subdivision().
00061 {
00062 newElement->next = cell.edgePoints;
00063 cell.edgePoints = newElement;
00064 }
|
|
||||||||||||
|
Definition at line 80 of file vtkCatmullClarkFilter.cpp. References VertexPoint::next, and CellData::vertexPoints. Referenced by Subdivision().
00080 {
00081 newElement->next = cell.vertexPoints;
00082 cell.vertexPoints = newElement;
00083 }
|
|
|
Definition at line 49 of file vtkCatmullClarkFilter.cpp. Referenced by MainWindow::newSubdivision().
00050 {
00051 // First try to create the object from the vtkObjectFactory
00052 vtkObject* ret = vtkObjectFactory::CreateInstance("vtkCatmullClarkFilter");
00053 if(ret)
00054 {
00055 return (vtkCatmullClarkFilter*)ret;
00056 }
00057 // If the factory was unable to create the object, then create it here.
00058 return new vtkCatmullClarkFilter;
00059 }
|
|
|
|
|
||||||||||||
|
Definition at line 142 of file vtkCatmullClarkFilter.cpp. References computeFacePoint(), EdgePoint::e, CellData::edgePoints, CellData::facePoint, findEdgePoint(), findVertexPoint(), getNeighborIds(), insertEdgePoint(), insertVertexPoint(), VertexPoint::next, EdgePoint::next, EdgePoint::p1, EdgePoint::p2, VertexPoint::v, VertexPoint::v_old, and CellData::vertexPoints. Referenced by Execute().
00142 {
00143 // BuildLinks(), generate topological information
00144 input->BuildLinks();
00145
00146 // create the building blocks of the output-polydata.
00147 vtkPoints *outputPoints = vtkPoints::New();
00148 vtkCellArray *outputPolys = vtkCellArray::New();
00149
00150 // create the array holding the information about face-, edge- and
00151 // vertex-points
00152 CellData *cells = new CellData[input->GetNumberOfCells()];
00153 for (int i = 0; i < input->GetNumberOfCells(); ++i) {
00154 cells[i].edgePoints = NULL;
00155 cells[i].vertexPoints = NULL;
00156 }
00157 int countInputCells = input->GetNumberOfCells();
00158
00159 // for each cell...
00160 for (int i = 0; i < countInputCells; i++) {
00161
00162 // get the current cell
00163 vtkGenericCell *cell = vtkGenericCell::New();
00164 input->GetCell(i, cell);
00165
00166 // get the number of points in the current cell
00167 int cpoints = cell->GetNumberOfPoints();
00168
00169 //=============================================
00170 // Compute the face point and add it to the
00171 // output-points
00172 //=============================================
00173 float *facePoint = new float[3];
00174 computeFacePoint(cell, facePoint);
00175 cells[i].facePoint = outputPoints->InsertNextPoint(facePoint);
00176
00177 //=============================================
00178 // Compute the edge points
00179 //=============================================
00180 for (int j = 0; j < cpoints; ++j) {
00181
00182 // determine ids of the two vertices that form the edge
00183 vtkIdType id1 = cell->GetPointId(j);
00184 vtkIdType id2 = cell->GetPointId((j+1) % cpoints);
00185
00186 // check: has the neighbouring cell already computed the edge-point?
00187 vtkIdList *neighborList = vtkIdList::New();
00188 input->GetCellEdgeNeighbors(i, id1, id2, neighborList);
00189 EdgePoint *edgePoint = NULL;
00190 vtkIdType neighbor = 0;
00191 if (neighborList->GetNumberOfIds() > 0) {
00192 neighbor = neighborList->GetId(0); // assume, there is only one neighbor
00193 edgePoint = findEdgePoint(cells[neighbor], id1, id2);
00194 }
00195
00196 if (edgePoint == NULL) { // edge not found at neighbor; has to be computed
00197
00198 // compute the face-point of the neighbor
00199 float *facePoint_n = new float[3];
00200 computeFacePoint(input->GetCell(neighbor), facePoint_n);
00201
00202 float *edgePoint = new float[3];
00203 edgePoint[0] = ((input->GetPoint(id1))[0] +
00204 (input->GetPoint(id2))[0] +
00205 (outputPoints->GetPoint(cells[i].facePoint))[0] +
00206 facePoint_n[0]) / 4.0f;
00207 edgePoint[1] = ((input->GetPoint(id1))[1] +
00208 (input->GetPoint(id2))[1] +
00209 (outputPoints->GetPoint(cells[i].facePoint))[1] +
00210 facePoint_n[1]) / 4.0f;
00211 edgePoint[2] = ((input->GetPoint(id1))[2] +
00212 (input->GetPoint(id2))[2] +
00213 (outputPoints->GetPoint(cells[i].facePoint))[2] +
00214 facePoint_n[2]) / 4.0f;
00215
00216 EdgePoint *newEdgePoint = new EdgePoint;
00217 newEdgePoint->p1 = id1;
00218 newEdgePoint->p2 = id2;
00219 newEdgePoint->e = outputPoints->InsertNextPoint(edgePoint);
00220 insertEdgePoint(cells[i], newEdgePoint);
00221
00222 } else { // edge found at neighbor; insert given information
00223
00224 EdgePoint *newEdgePoint = new EdgePoint;
00225 newEdgePoint->p1 = id1;
00226 newEdgePoint->p2 = id2;
00227 newEdgePoint->e = edgePoint->e;
00228 insertEdgePoint(cells[i], newEdgePoint);
00229 }
00230 }
00231
00232 //=============================================
00233 // Compute the vertex points
00234 //=============================================
00235 for (int j = 0; j < cpoints; ++j) {
00236
00237 // get the global id of the point
00238 vtkIdType id = cell->GetPointId(j);
00239
00240 // check: has the neighboring cell already computed the vertex-point?
00241 vtkIdList *neighborCells = vtkIdList::New();
00242 input->GetPointCells(id, neighborCells);
00243
00244 VertexPoint *vertexPoint = NULL;
00245 int k = 0;
00246
00247 while ((vertexPoint == NULL) &&
00248 (k < neighborCells->GetNumberOfIds())) {
00249 vertexPoint = findVertexPoint(cells[neighborCells->GetId(k)], id);
00250 ++k;
00251 }
00252 if (vertexPoint == NULL) { // vertex point must be computed
00253
00254 float *coord = new float[3];
00255 coord[0] = 0.0f;
00256 coord[1] = 0.0f;
00257 coord[2] = 0.0f;
00258
00259 // find out the neighbors
00260 vtkIdList *neighbors = getNeighborIds(input, id);
00261
00262 int n = neighbors->GetNumberOfIds();
00263
00264 vtkIdList *neighborCells = vtkIdList::New();
00265 input->GetPointCells(id, neighborCells);
00266 int a = neighborCells->GetNumberOfIds();
00267
00268 float weight_v = ((float)n-2.0f)/(float)n;
00269 float weight_e = 1.0f/(float)(n*n);
00270 float weight_f = 1.0f/(float)(n*n);
00271
00272 float *sum = new float[3];
00273 sum[0] = 0.0f;
00274 sum[1] = 0.0f;
00275 sum[2] = 0.0f;
00276
00277 // add weighted sum of involved face-points
00278 float *fp = new float[3];
00279 for (int l = 0; l < a; ++l) {
00280 computeFacePoint(input->GetCell(neighborCells->GetId(l)), fp);
00281 sum[0] += fp[0];
00282 sum[1] += fp[1];
00283 sum[2] += fp[2];
00284 }
00285 delete fp;
00286
00287 // add weighted sum of involved edge-points
00288 for (int l = 0; l < n; ++l) {
00289 sum[0] += input->GetPoint(neighbors->GetId(l))[0];
00290 sum[1] += input->GetPoint(neighbors->GetId(l))[1];
00291 sum[2] += input->GetPoint(neighbors->GetId(l))[2];
00292 }
00293
00294 // add weighted vertex
00295 coord[0] = (input->GetPoint(id))[0] * weight_v + sum[0]*weight_e;
00296 coord[1] = (input->GetPoint(id))[1] * weight_v + sum[1]*weight_e;
00297 coord[2] = (input->GetPoint(id))[2] * weight_v + sum[2]*weight_e;
00298
00299 /*
00300 coord[0] = (input->GetPoint(id))[0];
00301 coord[1] = (input->GetPoint(id))[1];
00302 coord[2] = (input->GetPoint(id))[2];
00303 */
00304
00305 VertexPoint *newVertexPoint = new VertexPoint;
00306 newVertexPoint->v_old = id;
00307 newVertexPoint->v = outputPoints->InsertNextPoint(coord);
00308 insertVertexPoint(cells[i], newVertexPoint);
00309 } else {
00310 VertexPoint *newVertexPoint = new VertexPoint;
00311 newVertexPoint->v_old = id;
00312 newVertexPoint->v = vertexPoint->v;
00313 insertVertexPoint(cells[i], newVertexPoint);
00314 }
00315 }
00316
00317 //=============================================
00318 // Create new Cell
00319 //=============================================
00320 for (int j = 0; j < cpoints; ++j) {
00321 vtkIdList *newPointIds = vtkIdList::New();
00322 vtkIdType id1 = cell->GetPointId((vtkIdType) j);
00323 vtkIdType id2 = cell->GetPointId((vtkIdType) ((j+1) % cpoints));
00324 vtkIdType id3 = cell->GetPointId((vtkIdType) ((j+2) % cpoints));
00325 vtkIdType e1 = (findEdgePoint(cells[i], id1, id2))->e;
00326 vtkIdType e2 = (findEdgePoint(cells[i], id2, id3))->e;
00327 vtkIdType v = (findVertexPoint(cells[i], id2))->v;
00328 vtkIdType f = cells[i].facePoint;
00329 newPointIds->InsertNextId(v);
00330 newPointIds->InsertNextId(e1);
00331 newPointIds->InsertNextId(f);
00332 newPointIds->InsertNextId(e2);
00333 outputPolys->InsertNextCell(newPointIds);
00334 }
00335
00336 EdgePoint *ep = cells[i].edgePoints;
00337 while (ep != NULL) {
00338 ep = ep->next;
00339 }
00340
00341 VertexPoint *vp = cells[i].vertexPoints;
00342 while (vp != NULL) {
00343 vp = vp->next;
00344 }
00345 }
00346
00347 // We now assign the points and polys to the output-vtkPolyData.
00348 output->SetPoints(outputPoints);
00349 output->SetPolys(outputPolys);
00350
00351 // free memory
00352 // ToDo: remove linked lists and other stuff
00353 delete [] cells;
00354 outputPoints->Delete();
00355 outputPolys->Delete();
00356 }
|
Here is the call graph for this function:
|
||||||||||||
|
|
1.3.2
