Screenshots:

The screenshots show various stream flow visualizations done with this program.

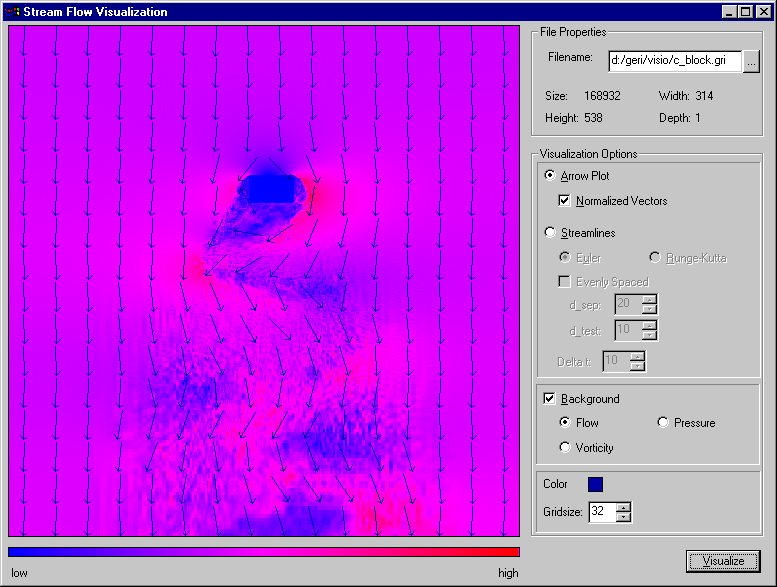

The first screenshot shows an arrow plot with normalized vectors and a grid size of 32.
The background shows the strength of the stream flow in various colors.

---

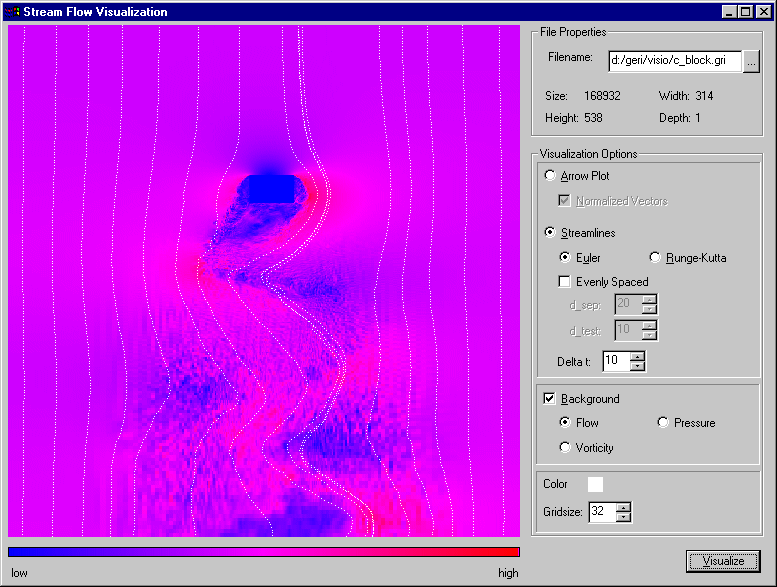

This screenshot shows normal streamlines with random chosen start points. The streamlines were calculated by the Euler integration algorithm and with a Dt of 10.
The background also shows the strength of the stream flow.

---

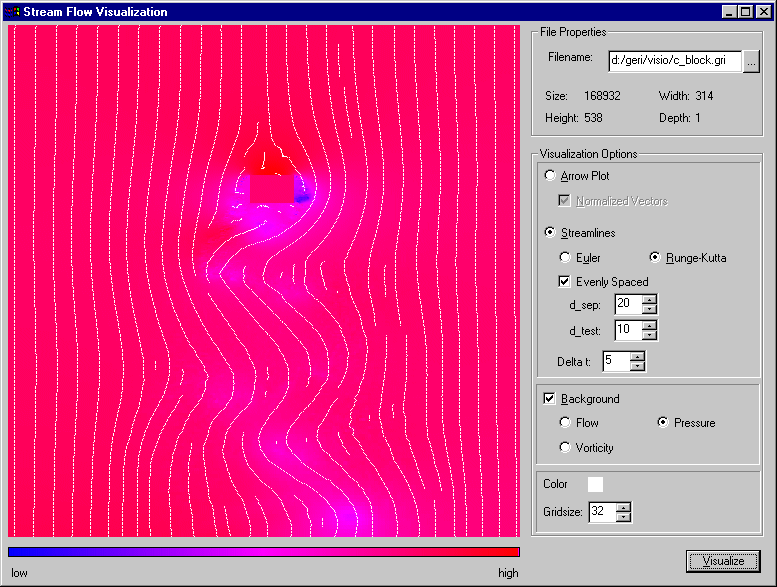

This screenshot shows evenly-spaced streamlines with a d_sep of 20 and a d_test of 10. The streamlines were calculated using the Runge-Kutta integration algorithm and with a Dt of 5. The background shows the pressure distribution in various colors.

---

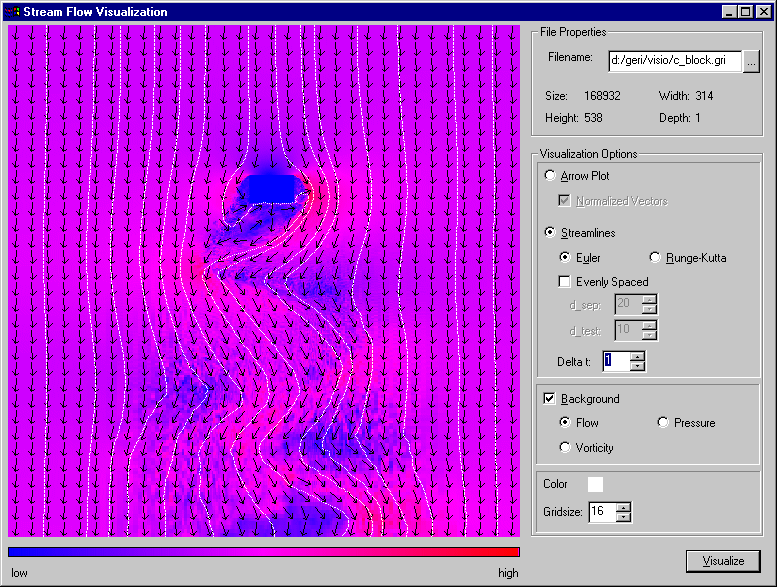

The last screenshot shows an arrow plot with normalized vectors and a grid size of 16. After the calculation of the arrow plot additional streamlines were inserted into the image using the Euler integration algorithm with a Dt of 5. The background once again shows the strength of the stream flow.
