Arrows Class Reference

#include <Arrows.h>

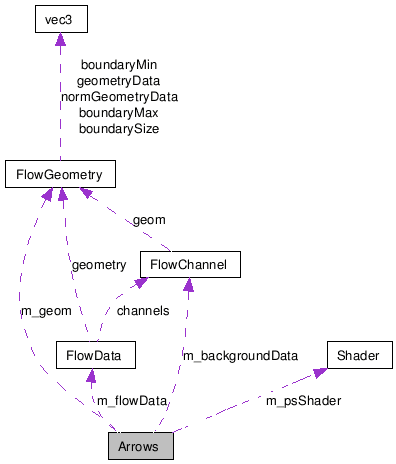

Collaboration diagram for Arrows:

[legend]

List of all members.

Public Slots
void	setResolution (int res)
void	setPointSize (int size)
void	setActivePointScale (bool ps)
void	setColor ()
Public Member Functions
	Arrows (QWidget *parent=0)
virtual	~Arrows ()
void	draw ()
void	setFlowData (FlowData *data)
void	setActiveBackground (int bg)

---

Detailed Description

Definition at line 11 of file Arrows.h.

---

Constructor & Destructor Documentation

Arrows::Arrows

(

QWidget *

parent = 0

)

nk - connect navigation with setRes & setPointSize

nk - choose color for arrows : tbd: modify shader

Definition at line 6 of file Arrows.cpp.

References Shader::Bind(), Shader::GetProgram(), Shader::Load(), setActivePointScale(), setColor(), setPointSize(), setResolution(), and Shader::Unbind().

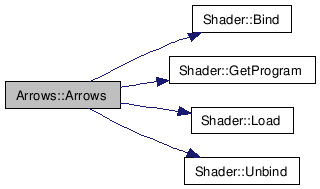

Here is the call graph for this function:

Arrows::~Arrows

(

)

[virtual]

Definition at line 44 of file Arrows.cpp.

---

Member Function Documentation

void Arrows::draw

(

)

TEST Velocity & points

if xTick is reached -> place vertex and increase xRes

blend point sprites with bg texture

nk - set current arrow color -> black does not work because of blending with background (not texture)

nk - set active textur unit explicit!!!

nk - current index in dataset array

null-vector

FlowChannel* chZ = m_flowData->getChannel(Z); // nk - we use only x/y to draw in plane

nk - now corrected version of drawing arrows

get already normalized velocity vector - only use x,y becaus of plane

nk - calc angle of arrows

set normal point size

bind shader

set angle in shader

nk reset current color back to old one

Definition at line 146 of file Arrows.cpp.

References Shader::Bind(), FlowData::getChannel(), FlowGeometry::getNormPos(), FlowChannel::getValue(), Shader::Unbind(), vec3::v, X, and Y.

Referenced by OpenGLWidget::paintGL().

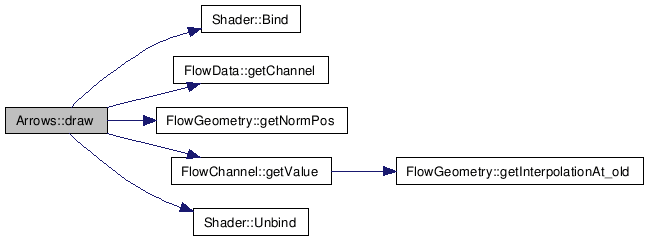

Here is the call graph for this function:

void Arrows::setFlowData

(

FlowData *

data

)

set flow data

set flow geometry

set dims of dataset

create arrow texture

Definition at line 118 of file Arrows.cpp.

References Texture::CreateGlyph(), FlowGeometry::getDimX(), FlowGeometry::getDimY(), and FlowData::getGeometry().

Referenced by OpenGLWidget::setFlowData().

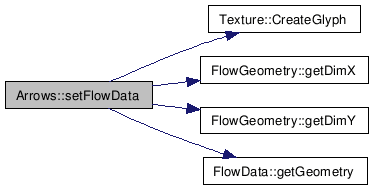

Here is the call graph for this function:

void Arrows::setActiveBackground

(

int

bg

)

Definition at line 49 of file Arrows.cpp.

References FlowData::getChannel(), FlowData::getChannelCount(), FlowData::getIsScalar(), and NORMALIZED.

Referenced by OpenGLWidget::setActiveBackground().

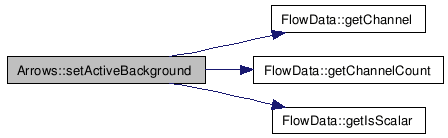

Here is the call graph for this function:

void Arrows::setResolution

(

int

res

)

[slot]

Definition at line 81 of file Arrows.cpp.

Referenced by Arrows().

void Arrows::setPointSize

(

int

size

)

[slot]

Definition at line 88 of file Arrows.cpp.

Referenced by Arrows().

void Arrows::setActivePointScale

(

bool

ps

)

[slot]

Definition at line 95 of file Arrows.cpp.

Referenced by Arrows().

void Arrows::setColor

(

)

[slot]

Definition at line 101 of file Arrows.cpp.

Referenced by Arrows().

---

The documentation for this class was generated from the following files:

• C:/Projekte/C++/FlowVIS_107/src/Arrows.h
• C:/Projekte/C++/FlowVIS_107/src/Arrows.cpp

---
