NodeAnimation Class Reference

#include <NodeAnimation.h>

List of all members.

Public Member Functions

 NodeAnimation ()

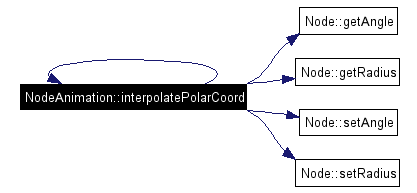

void interpolatePolarCoord (Node *node, GLfloat radius_end, GLfloat angle_end, GLuint iter)
void calculateNodeRadiusAndColor (Node *node, GLfloat radius)
void setNodeAnimationSpeed (GLuint *animation_speed)

Detailed Description

This class is reponsable for the animation of one node. The node can be passed using the constructor. Every animation of a node consists of the start position and the end position. The values between these positions will be calculated using 'proceedAnimation()'.

Definition at line 27 of file NodeAnimation.h.

Constructor & Destructor Documentation

NodeAnimation::NodeAnimation (   )  [inline]


The default constructor.

Definition at line 40 of file NodeAnimation.h.

00040                    :
00041      animation_speed_(NULL)
00042    {
00043    }

Member Function Documentation

void NodeAnimation::calculateNodeRadiusAndColor (  Node *  node,
GLfloat  radius
)


This calculates the radius of the node depending on the difference to the focus.

Parameters:
radius The difference from the focus.

Definition at line 76 of file NodeAnimation.cpp.

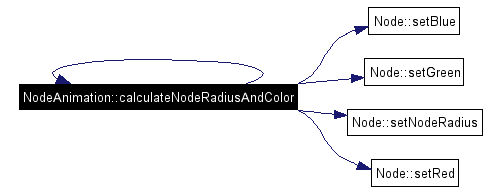

References calculateNodeRadiusAndColor(), Node::setBlue(), Node::setGreen(), Node::setNodeRadius(), and Node::setRed().

Referenced by calculateNodeRadiusAndColor(), and Graph::drawGraph().

00077 {
00078   GLfloat biggest_node = 0.18f; //radius of the node in the focus
00079   GLfloat smallest_node = 0.03f; //radius of the node on the outside of the ring
00080   GLint number_rings = 9; //number of rings in the radial graph
00081     // how much must get the radius of the node smaller between two graph
00082     // circles / 3:
00083   GLfloat node_radius_difference = (biggest_node - smallest_node) /
00084                                    (number_rings * 6);
00085
00086   GLuint red;
00087   GLuint green;
00088   GLuint blue;
00089
00090     // for the space between the focus and the first ring. We divide with 3
00091     // because we want to make the node smaller for 3 times. That means that
00092     // between the focus and the first ring the radius of the node id
00093     // decreasing each space_sektor for node_radius_differernce
00094   GLfloat space_sector01 = (abs(0.5 - 0.0) / 6);
00095   GLfloat space_sector12 = (abs(0.9 - 0.5) / 6);
00096   GLfloat space_sector23 = (abs(0.9 - 1.22) / 6);
00097   GLfloat space_sector34 = abs(1.22 - 1.476) / 6;
00098   GLfloat space_sector45 = abs(1.476 - 1.6808) / 6;
00099   GLfloat space_sector56 = abs(1.6808 - 1.84464) / 6;
00100   GLfloat space_sector67 = abs(1.84464 - 1.97571) / 6;
00101   GLfloat space_sector78 = abs(1.97571 - 2.08057) / 6;
00102   GLfloat space_sector89 = abs(2.08057 - 2.16446) / 6;
00103   GLfloat space_sector90 = abs(2.16446 - 2.23156) / 6;
00104   GLfloat radius_node; // the actual radius of the node
00105
00106   if (radius <= space_sector01)
00107   {
00108     radius_node = biggest_node;
00109     red = 101; green = 5; blue = 101;
00110   }
00111   else if ((radius > space_sector01) && (radius <= 2 * space_sector01))
00112   {
00113     radius_node = biggest_node - 1 * node_radius_difference;
00114     red = 107; green = 5; blue = 107;
00115   }
00116   else if ((radius > 2 * space_sector01) && (radius <= 3 * space_sector01))
00117   {
00118     radius_node= biggest_node - 2 * node_radius_difference;
00119     red = 114; green = 5; blue = 114;
00120   }
00121   else if ((radius > 3 * space_sector01) && (radius <= 4 * space_sector01))
00122   {
00123     radius_node= biggest_node - 3 * node_radius_difference;
00124     red = 119; green = 6; blue = 119;
00125   }
00126   else if ((radius > 4 * space_sector01) && (radius <= 5 * space_sector01))
00127   {
00128     radius_node= biggest_node - 4 * node_radius_difference;
00129     red = 125; green = 6; blue = 125;
00130   }
00131   else if ((radius > 5 * space_sector01) && (radius <= 6 * space_sector01))
00132   {
00133     radius_node= biggest_node - 5 * node_radius_difference;
00134     red = 132; green = 6; blue = 132;
00135   }
00136
00137     // for the space between the first and the second ring:
00138   else if (( radius > 0.5) && (radius <= 0.5 + space_sector12))
00139   {
00140     radius_node = biggest_node - 6 * node_radius_difference;
00141     red = 137; green = 7; blue = 137;
00142   }
00143   else if ((radius > 0.5 + space_sector12) && (radius <= 0.5 + 2 * space_sector12))
00144   {
00145     radius_node = biggest_node - 7 * node_radius_difference;
00146     red = 143; green = 7; blue = 143;
00147   }
00148   else if ((radius > 0.5 + 2 * space_sector12) && ( radius <= 0.5 + 3 * space_sector12))
00149   {
00150     radius_node = biggest_node - 8 * node_radius_difference;
00151     red = 150; green = 7; blue = 150;
00152   }
00153   else if ((radius > 0.5 + 3 * space_sector12) && ( radius <= 0.5 + 4 * space_sector12))
00154   {
00155     radius_node = biggest_node - 9 * node_radius_difference;
00156     red = 156; green = 7; blue = 156;
00157   }
00158   else if ((radius > 0.5 + 4 * space_sector12) && ( radius <= 0.5 + 5 * space_sector12))
00159   {
00160     radius_node = biggest_node - 10 * node_radius_difference;
00161     red = 162; green = 9; blue = 162;
00162   }
00163   else if ((radius > 0.5 + 5 * space_sector12) && ( radius <= 0.5 + 6 * space_sector12))
00164   {
00165     radius_node = biggest_node - 11 * node_radius_difference;
00166     red = 168; green = 9; blue = 168;
00167   }
00168
00169     // for the space between the second and the third ring:
00170   else if (( radius > 0.9) && (radius <= 0.9 + space_sector23))
00171   {
00172     radius_node = biggest_node - 12 * node_radius_difference;
00173     red = 174; green = 9; blue = 174;
00174   }
00175   else if ((radius > 0.9 + space_sector23) && (radius <= 0.9 + 2 * space_sector23))
00176   {
00177     radius_node = biggest_node - 13 * node_radius_difference;
00178     red = 180; green = 10; blue = 180;
00179   }
00180   else if ((radius > 0.9 + 2 * space_sector23) && (radius <= 0.9 + 3 * space_sector23))
00181   {
00182     radius_node = biggest_node - 14 * node_radius_difference;
00183     red = 186; green = 10; blue = 186;
00184   }
00185   else if ((radius > 0.9 + 3 * space_sector23) && (radius <= 0.9 + 4 * space_sector23))
00186   {
00187     radius_node = biggest_node - 15 * node_radius_difference;
00188     red = 192; green = 10; blue = 192;
00189   }
00190   else if ((radius > 0.9 + 4 * space_sector23) && (radius <= 0.9 + 5 * space_sector23))
00191   {
00192     radius_node = biggest_node - 16 * node_radius_difference;
00193     red = 199; green = 10; blue = 199;
00194   }
00195   else if ((radius > 0.9 + 5 * space_sector23) && (radius <= 0.9 + 6 * space_sector23))
00196   {
00197     radius_node = biggest_node - 17 * node_radius_difference;
00198     red = 204; green = 11; blue = 204;
00199   }
00200
00201     // for the space between the third and the fourth ring:
00202   else if (( radius > 1.22) && (radius <= 1.22 + space_sector34))
00203   {
00204     radius_node = biggest_node - 18 * node_radius_difference;
00205     red = 210; green = 11; blue = 210;
00206   }
00207   else if ((radius > 1.22 + space_sector34) && (radius <= 1.22 + 2 * space_sector34))
00208   {
00209     radius_node = biggest_node - 19 * node_radius_difference;
00210     red = 217; green = 11; blue = 217;
00211   }
00212   else if ((radius > 1.22 + 2 * space_sector34) && (radius <= 1.22 + 3 * space_sector34))
00213   {
00214     radius_node = biggest_node - 20 * node_radius_difference;
00215     red = 222; green = 11; blue = 222;
00216   }
00217   else if ((radius > 1.22 + 3 * space_sector34) && (radius <= 1.22 + 4 * space_sector34))
00218   {
00219     radius_node = biggest_node - 21 * node_radius_difference;
00220     red = 228; green = 12; blue = 228;
00221   }
00222   else if ((radius > 1.22 + 4 * space_sector34) && (radius <= 1.22 + 5 * space_sector34))
00223   {
00224     radius_node = biggest_node - 22 * node_radius_difference;
00225     red = 235; green = 12; blue = 235;
00226   }
00227   else if ((radius > 1.22 + 5 * space_sector34) && (radius <= 1.22 + 6 * space_sector34))
00228   {
00229     radius_node = biggest_node - 23 * node_radius_difference;
00230     red = 241; green = 12; blue = 241;
00231   }
00232
00233     // for the space between the fourth and the fifth ring:
00234   else if (( radius > 1.476) && (radius <= 1.476 + space_sector45))
00235   {
00236     radius_node = biggest_node - 24 * node_radius_difference;
00237     red = 243; green = 16; blue = 243;
00238   }
00239   else if ((radius > 1.476 + space_sector45) && (radius <= 1.476 + 2 * space_sector45))
00240   {
00241     radius_node = biggest_node - 25 * node_radius_difference;
00242     red = 243; green = 22; blue = 243;
00243   }
00244   else if ((radius > 1.476 + 2 * space_sector45) && (radius <= 1.476 + 3 * space_sector45))
00245   {
00246     radius_node = biggest_node - 26 * node_radius_difference;
00247     red = 243; green = 29; blue = 243;
00248   }
00249   else if ((radius > 1.476 + 3 * space_sector45) && (radius <= 1.476 + 4 * space_sector45))
00250   {
00251     radius_node = biggest_node - 27 * node_radius_difference;
00252     red = 244; green = 34; blue = 244;
00253   }
00254   else if ((radius > 1.476 + 4 * space_sector45) && (radius <= 1.476 + 5 * space_sector45))
00255   {
00256     radius_node = biggest_node - 28 * node_radius_difference;
00257     red = 244; green = 40; blue = 244;
00258   }
00259   else if ((radius > 1.476 + 5 * space_sector45) && (radius <= 1.476 + 6 * space_sector45))
00260   {
00261     radius_node = biggest_node - 29 * node_radius_difference;
00262     red = 244; green = 47; blue = 244;
00263   }
00264
00265     // for the space between the fifth and the sixth ring:
00266   else if (( radius > 1.6808) && (radius <= 1.6808 + space_sector56))
00267   {
00268     radius_node = biggest_node - 30 * node_radius_difference;
00269     red = 244; green = 53; blue = 244;
00270   }
00271   else if ((radius > 1.6808 + space_sector56) && (radius <= 1.6808 + 2 * space_sector56))
00272   {
00273     radius_node = biggest_node - 31 * node_radius_difference;
00274     red = 245; green = 58; blue = 244;
00275     }
00276   else if ((radius > 1.6808 + 2 * space_sector56) && (radius <= 1.6808 + 3 * space_sector56))
00277   {
00278     radius_node = biggest_node - 32 * node_radius_difference;
00279     red = 245; green = 65; blue = 245;
00280   }
00281    else if ((radius > 1.6808 + 3 * space_sector56) && (radius <= 1.6808 + 4 * space_sector56))
00282   {
00283     radius_node = biggest_node - 33 * node_radius_difference;
00284     red = 245; green = 71; blue = 245;
00285   }
00286    else if ((radius > 1.6808 + 4 * space_sector56) && (radius <= 1.6808 + 5 * space_sector56))
00287   {
00288     radius_node = biggest_node - 34 * node_radius_difference;
00289     red = 247; green = 77; blue = 247;
00290   }
00291    else if ((radius > 1.6808 + 5 * space_sector56) && (radius <= 1.6808 + 6 * space_sector56))
00292   {
00293     radius_node = biggest_node - 35 * node_radius_difference;
00294     red = 247; green = 83; blue = 247;
00295   }
00296
00297     // for the space between the sixth and the seventh ring:
00298   else if (( radius > 1.84464) && (radius <= 1.84464 + space_sector67))
00299   {
00300     radius_node = biggest_node - 36 * node_radius_difference;
00301     red = 247; green = 89; blue = 247;
00302   }
00303   else if ((radius > 1.84464 + space_sector67) &&
00304            (radius <= 1.84464 + 2 * space_sector67))
00305   {
00306     radius_node = biggest_node - 37 * node_radius_difference;
00307     red = 247; green = 96; blue = 247;
00308   }
00309   else if ((radius > 1.84464 + 2 * space_sector67) && (radius <= 1.84464 + 3 * space_sector67))
00310   {
00311     radius_node = biggest_node - 38 * node_radius_difference;
00312     red = 248; green = 101; blue = 248;
00313   }
00314   else if ((radius > 1.84464 + 3 * space_sector67) && (radius <= 1.84464 + 4 * space_sector67))
00315   {
00316     radius_node = biggest_node - 39 * node_radius_difference;
00317     red = 248; green = 107; blue = 248;
00318   }
00319   else if ((radius > 1.84464 + 4 * space_sector67) && (radius <= 1.84464 + 5 * space_sector67))
00320   {
00321     radius_node = biggest_node - 40 * node_radius_difference;
00322     red = 248; green = 114; blue = 248;
00323   }
00324   else if ((radius > 1.84464 + 5 * space_sector67) && (radius <= 1.84464 + 6 * space_sector67))
00325   {
00326     radius_node = biggest_node - 41 * node_radius_difference;
00327     red = 249; green = 119; blue = 249;
00328   }
00329
00330     // for the space between the seventh and the eighth ring:
00331   else if (( radius > 1.97571) && (radius <= 1.97571 + space_sector78))
00332   {
00333     radius_node = biggest_node - 42 * node_radius_difference;
00334     red = 249; green = 125; blue = 249;
00335   }
00336   else if ((radius > 1.97571 + space_sector78) &&
00337            (radius <= 1.97571 + 2 * space_sector78))
00338   {
00339     radius_node = biggest_node - 43 * node_radius_difference;
00340     red = 249; green = 132; blue = 249;
00341   }
00342   else if ((radius > 1.97571 + 2 * space_sector78) && (radius <= 1.97571 + 3 * space_sector78))
00343   {
00344     radius_node = biggest_node - 44 * node_radius_difference;
00345     red = 249; green = 138; blue = 249;
00346   }
00347   else if ((radius > 1.97571 + 3 * space_sector78) && (radius <= 1.97571 + 4 * space_sector78))
00348   {
00349     radius_node = biggest_node - 45 * node_radius_difference;
00350     red = 250; green = 143; blue = 250;
00351   }
00352   else if ((radius > 1.97571 + 4 * space_sector78) && (radius <= 1.97571 + 5 * space_sector78))
00353   {
00354     radius_node = biggest_node - 46 * node_radius_difference;
00355     red = 250; green = 150; blue = 250;
00356   }
00357   else if ((radius > 1.97571 + 5 * space_sector78) && (radius <= 1.97571 + 6 * space_sector78))
00358   {
00359     radius_node = biggest_node - 47 * node_radius_difference;
00360     red = 250; green = 156; blue = 250;
00361   }
00362
00363     // for the space between the eighth and the nineth ring:
00364   else if (( radius > 2.08057) && (radius <= 2.08057 + space_sector89))
00365   {
00366     radius_node = biggest_node - 48 * node_radius_difference;
00367     red = 251; green = 162; blue = 251;
00368   }
00369   else if ((radius > 2.08057 + space_sector89) &&
00370            (radius <= 2.08057 + 2 * space_sector89))
00371   {
00372     radius_node = biggest_node - 49 * node_radius_difference;
00373     red = 251; green = 168; blue = 251;
00374   }
00375   else if ((radius > 2.08057 + 2 * space_sector89) && (radius <= 2.08057 + 3 * space_sector89))
00376   {
00377     radius_node = biggest_node - 50 * node_radius_difference;
00378     red = 251; green = 174; blue = 251;
00379   }
00380   else if ((radius > 2.08057 + 3 * space_sector89) && (radius <= 2.08057 + 4 * space_sector89))
00381   {
00382     radius_node = biggest_node - 51 * node_radius_difference;
00383     red = 251; green = 181; blue = 251;
00384   }
00385   else if ((radius > 2.08057 + 4 * space_sector89) && (radius <= 2.08057 + 5 * space_sector89))
00386   {
00387     radius_node = biggest_node - 52 * node_radius_difference;
00388     red = 252; green = 186; blue = 252;
00389   }
00390   else if ((radius > 2.08057 + 5 * space_sector89) && (radius <= 2.08057 + 6 * space_sector89))
00391   {
00392     radius_node = biggest_node - 53 * node_radius_difference;
00393     red = 252; green = 192; blue = 252;
00394   }
00395
00396   // for the space between the nineth and the tenth ring:
00397   else if (( radius > 2.16446) && (radius <= 2.16446 + space_sector90))
00398   {
00399     radius_node = biggest_node - 54 * node_radius_difference;
00400     red = 252; green = 199; blue = 252;
00401   }
00402   else if ((radius > 2.16446 + space_sector90) &&
00403            (radius <= 2.16446 + 2 * space_sector90))
00404   {
00405     radius_node = biggest_node - 55 * node_radius_difference;
00406     red = 253; green = 204; blue = 253;
00407   }
00408   else if ((radius > 2.16446 + 2 * space_sector90) && (radius <= 2.16446 + 3 * space_sector90))
00409   {
00410     radius_node = biggest_node - 56 * node_radius_difference;
00411     red = 253; green = 210; blue = 253;
00412   }
00413   else if ((radius > 2.16446 + 3 * space_sector90) && (radius <= 2.16446 + 4 * space_sector90))
00414   {
00415     radius_node = biggest_node - 57 * node_radius_difference;
00416     red = 253; green = 217; blue = 253;
00417   }
00418   else if ((radius > 2.16446 + 4 * space_sector90) && (radius <= 2.16446 + 5 * space_sector90))
00419   {
00420     radius_node = biggest_node - 58 * node_radius_difference;
00421     red = 253; green = 223; blue = 253;
00422   }
00423   else if ((radius > 2.16446 + 5 * space_sector90) && (radius <= 2.16446 + 6 * space_sector90))
00424   {
00425     radius_node = biggest_node - 59 * node_radius_difference;
00426     red = 254; green = 228; blue = 254;
00427   }
00428   //radius_node = 0.1f;
00429   node->setNodeRadius(radius_node);
00430   node->setRed(red);
00431   node->setGreen(green);
00432   node->setBlue(blue);
00433 }

Here is the call graph for this function:

void NodeAnimation::interpolatePolarCoord (  Node *  node,
GLfloat  radius_end,
GLfloat  angle_end,
GLuint  iter
)


This interpolates the polar coordinates for the animation.

Precondition:
node != NULL
Parameters:
radius_end The radius of the final point after the animation
angle_end The angle of the final point after the animation
iter The iterator for the rendering.

Definition at line 22 of file NodeAnimation.cpp.

References Node::getAngle(), Node::getRadius(), interpolatePolarCoord(), is_animation_running_, Node::setAngle(), and Node::setRadius().

Referenced by Graph::drawGraph(), and interpolatePolarCoord().

00024 {
00025   GLint points = (*animation_speed_) - iter;
00026   //cout << "/// " << points << endl;
00027   if (points == 0)
00028   {
00029     is_animation_running_ = false;
00030     return;
00031   }
00032   angle_start_ = node->getAngle();
00033   radius_start_ = node->getRadius();
00034
00035   GLfloat angle_difference =
00036     abs((GLfloat)angle_start_ - (GLfloat)angle_end);
00037   GLfloat radius_difference = radius_end - radius_start_;
00038
00039   GLfloat angle_sector = 0;
00040
00041   if (angle_difference > 180)
00042   {
00043     angle_difference = 360 - angle_difference;
00044   }
00045
00046   angle_sector = angle_difference / points;
00047
00048   if (angle_difference > 180)
00049   {
00050     angle_sector = -angle_sector;
00051   }
00052   GLfloat radius_sector = radius_difference / points;
00053
00054   GLfloat angle = angle_start_ + angle_sector;
00055   GLfloat radius = radius_start_ + radius_sector;
00056
00057   if (abs(angle - angle_end) <= 0.000001)
00058   {
00059     points = 0;
00060     node->setAngle(angle_end);
00061     node->setRadius(radius_end);
00062   }
00063     //GLfloat x = radius * cos(angle);
00064     //GLfloat y = radius * sin(angle);
00065   node->setAngle(angle);
00066   node->setRadius(radius);
00067     //node->setPointVector(new Vector3D(x, y, 0.0, 0.0));
00068 }

Here is the call graph for this function:

void NodeAnimation::setNodeAnimationSpeed (  GLuint *  animation_speed  )


This sets the node's animation speed.

Parameters:
animation_speed The node's animation speed.

Definition at line 440 of file NodeAnimation.cpp.

References setNodeAnimationSpeed().

Referenced by Graph::drawGraph(), and setNodeAnimationSpeed().

00441 {
00442   animation_speed_ = animation_speed;
00443 }

Here is the call graph for this function:

The documentation for this class was generated from the following files:
Generated on Mon Jun 14 12:49:10 2004 for InfoVis by doxygen 1.3.7
