VolVis::VolumeRendering::RaycastRendering Class Reference

#include <RaycastRendering.h>

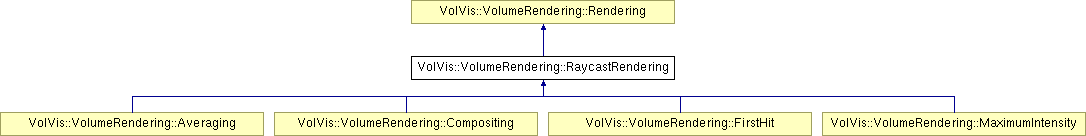

Inheritance diagram for VolVis::VolumeRendering::RaycastRendering:

---

Detailed Description

This implements everything which is the same for all render modes using raycasting, but has different data. This class is abstract due to the lack of a render-method.

See also:

Raycasting where the things are implemented, which have the same data for all raycasting render modes.

Public Member Functions
virtual void	prepareForRender (bool viewChanged)
	RaycastRendering (const std::string &name, Raycasting *raycasting)
void	setStepSize (double stepSize)
Protected Attributes
Raycasting *	m_pRaycasting
Shader::ShaderObject *	m_pRaycastShader

---

Constructor & Destructor Documentation

VolVis::VolumeRendering::RaycastRendering::RaycastRendering	(	const std::string &	name,
		Raycasting *	raycasting
	)			[inline]

Constructor. Sets up the parameters and default values.

Parameters:

	name	Name of the render mode. Usually defined in subclasses.
	raycasting

---

Member Function Documentation

virtual void VolVis::VolumeRendering::RaycastRendering::prepareForRender

(

bool

viewChanged

)

[inline, virtual]

Uses the raycasting object for creating the direction cubes (if they need to be updated).

Parameters:

viewChanged

if true, the direction cubes are updated in any case.

Reimplemented from VolVis::VolumeRendering::Rendering.

void VolVis::VolumeRendering::RaycastRendering::setStepSize

(

double

stepSize

)

[inline]

Defines the step size of the raycasting. In which intervals is the volume sampled by a casted ray.

Parameters:

stepSize

interval for sampling in raycasting

---

Field Documentation

Raycasting* VolVis::VolumeRendering::RaycastRendering::m_pRaycasting [protected]

The raycasting object contains data and code which is the same for all render modes. The same object can be bound to all raycasting render modes.

Shader::ShaderObject* VolVis::VolumeRendering::RaycastRendering::m_pRaycastShader [protected]

This shader object renders the direction cubes.

---

The documentation for this class was generated from the following file:

• RaycastRendering.h

---
