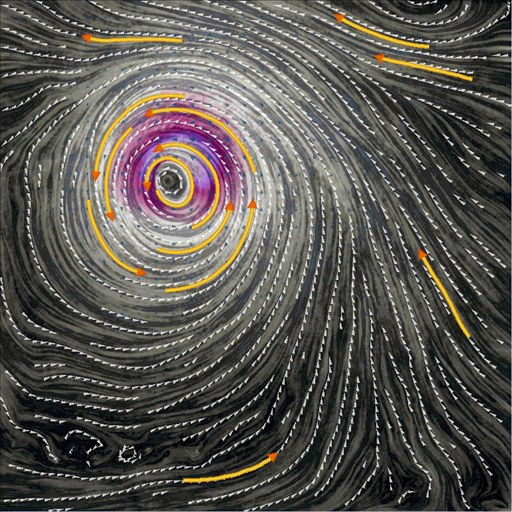

Features

The features of the application Flow Rendering are:
  • Interactive one Dimensional Transferfunctions
  • Selection of different background properties
  • Slicing through timesteps if more than one is available
  • Arrow Rendering
    • Constant Color and Alpha
    • Color coded by Transferfunction (lenght of velocity is used)
    • Icon rendering
      • interactive placeable
      • interactive length of backwards integration
  • Streamline Rendering
    • Constant Color and Alpha
    • Color coded by Transferfunction (lenght of velocity is used)
    • Different Forms
      • Tapering (only for evenly spaced)
      • Glyphes
    • Integration methods
      • Euler
      • Runge Kutta (only for non-evenly spaced)
    • Placement Methods
      • From Different Sides
      • Manual and interactive
      • Random
      • Evenly Spaced
  • LIC Rendering
    • Constant Color and Alpha
    • Color coded by Transferfunction (lenght of velocity is used)
    • Pseudo animation by texture modulation
