GLWidget Class Reference

The GLWidget class This is the main class containing the OpenGL context All interaction with OpenGL happens here. More...

#include <glwidget.h>

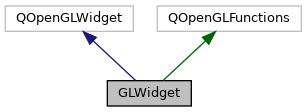

Inheritance diagram for GLWidget:
Inheritance graph
[legend]

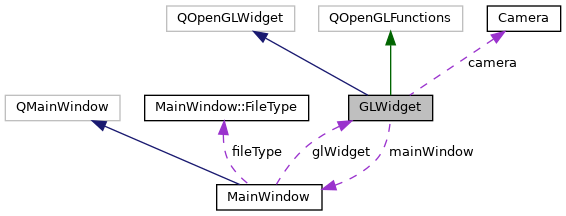

Collaboration diagram for GLWidget:
Collaboration graph
[legend]

Public Types

enum  RenderMode { NONE, LINES, POINTS }
 RenderMode enum currently only LINES is supported.


Public Slots

void cleanup ()


Signals

void usedGPUMemoryChanged (float size)

void totalGPUMemoryChanged (float size)

void fpsChanged (int fps)

void graphicsDeviceInfoChanged (QString string)


Public Member Functions

 GLWidget (QWidget *parent, MainWindow *mainWindow)

void initLineRenderMode (std::vector< std::vector< LineVertex > > *lines)
 set up OpenGL buffers and shaders to render lines More...

QImage getImage ()
 getImage More...

void updateClipPlaneNormal ()
 updateClipPlaneNormal set the clip plane normal to the current right camera vector this is much easier for the user than setting the clip plane explicitly


Public Attributes

float lineTriangleStripWidth
 total width of triangle strip (black line + white halo)

float lineWidthPercentageBlack
 percentage of triangle strip drawn black to represent line (rest is white halo)

float lineWidthDepthCueingFactor
 how much the black line is drawn thinner with increasing depth

float lineHaloMaxDepth
 max depth displacement of halo

bool enableClipping
 if enabled, clip beyond a specified clipping plane. note: no real clipping we only discard fragments

glm::vec3 clipPlaneNormal
 direction along which to clip. note: no real clipping we only discard fragments

float clipPlaneDistance
 distance from origin in direction of clipPlaneNormal beyond which to clip

enum GLWidget::RenderMode renderMode


Protected Slots

void paintGL () Q_DECL_OVERRIDE

void initializeGL () Q_DECL_OVERRIDE

void resizeGL (int w, int h) Q_DECL_OVERRIDE


Protected Member Functions

void mousePressEvent (QMouseEvent *event) Q_DECL_OVERRIDE

void mouseMoveEvent (QMouseEvent *event) Q_DECL_OVERRIDE

void keyPressEvent (QKeyEvent *event) Q_DECL_OVERRIDE

void keyReleaseEvent (QKeyEvent *event) Q_DECL_OVERRIDE

void wheelEvent (QWheelEvent *event) Q_DECL_OVERRIDE


Private Member Functions

void initShaders ()

void allocateGPUBufferLineData ()

void drawLines ()

void calculateFPS ()

void printDebugMsg (const QOpenGLDebugMessage &msg)


Private Attributes

Camera camera

std::vector< std::vector< LineVertex > > * lines

size_t nrLines

QOpenGLShaderProgram * shaderLinesWithHalos

QOpenGLVertexArrayObject vaoLines

QOpenGLBuffer vboLines

QPoint lastMousePos

size_t frameCount = 0

size_t fps = 0

qint64 previousTimeFPS

QElapsedTimer fpsTimer

bool GL_NVX_gpu_memory_info_supported = false

GLint total_mem_kb = 0

GLint cur_avail_mem_kb = 0

QTimer paintTimer

QOpenGLDebugLogger * logger

MainWindowmainWindow


Friends

class MainWindow
 make friend since tightly coupled anyway


Detailed Description

The GLWidget class This is the main class containing the OpenGL context All interaction with OpenGL happens here.

Member Function Documentation

◆ getImage()

QImage GLWidget::getImage ( )
inline

getImage

Returns
an image snapshot of the current OpenGL framebuffer

◆ initLineRenderMode()

void GLWidget::initLineRenderMode ( std::vector< std::vector< LineVertex > > *  lines)

set up OpenGL buffers and shaders to render lines

Parameters
linesvector of lines (vector of vector of line vertices) each vertex has 8 floats: 3 pos, 3 direction to next, 2 uv for triangle strip texturing we store all three attributes interleaved on single vbo [<posdirectionuv><posdirectionuv>...] NOTE: we store two sequential copies of each vertex (one with v = 0, one with v = 1) to draw lines as triangle strips

Member Data Documentation

◆ lines

std::vector<std::vector<LineVertex> >* GLWidget::lines
private

CPU line vertex data each line vertex has 8 floats: 3 pos, 3 direction to next, 2 uv for triangle strip texturing NOTE: we store two sequential copies of each vertex (one with v = 0, one with v = 1) to draw lines as triangle strips


The documentation for this class was generated from the following files:
