GLUTCallbackFunctions.h File Reference

This file contains the declarations of all important callback functions for the GLUT and GLUI events. More...

#include "../src/main.h"
#include "../src/Graph.h"
#include "../src/RadialLayout.h"

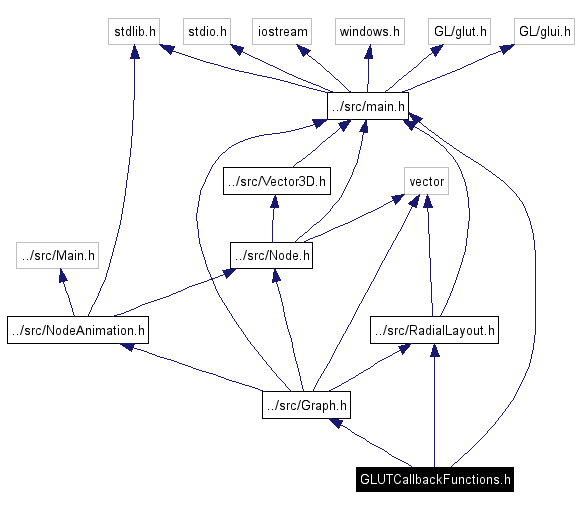

Include dependency graph for GLUTCallbackFunctions.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Functions
void	createGLUTWindow (Graph *graph, RadialLayout *radial_layout, GLuint screen_width, GLuint screen_height)
void	createGLUI ()
void	myGLUTIdleFunc ()
void	myGLUTReshapeFunc (GLint screen_width, GLint screen_height)
void	renderScene ()
void	updateRenderMode ()
void	startDemoMode ()
void	myGLUTKeyboardEventFunc (unsigned char key, int x_pos, int y_pos)
void	myGLUTMouseEventFunc (int button, int state, int x_pos, int y_pos)
int	retrieveObjectID (int x_coord, int y_coord)
void	myGlutMotion (int x_pos, int y_pos)
void	resetSceneRotation ()
void	toggleCaptionEnabling ()

---

Detailed Description

This file contains the declarations of all important callback functions for the GLUT and GLUI events.

Definition in file GLUTCallbackFunctions.h.

---

Function Documentation

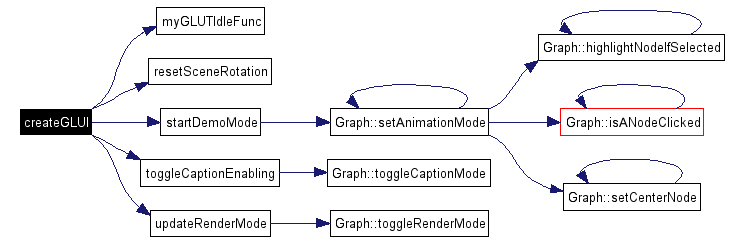

void createGLUI (   )

This creates the GLUI for the application. Definition at line 98 of file GLUTCallbackFunctions.cpp. References is_caption_enabled_, main_window, myGLUTIdleFunc(), resetSceneRotation(), selected_animation_speed_, selected_render_mode_, startDemoMode(), toggleCaptionEnabling(), and updateRenderMode(). Referenced by createGLUTWindow(). { //exit(3434); GLUI *glui_window = GLUI_Master.create_glui("Menu"); // for he animation speed GLUI_Spinner *animation_speed_spinner = glui_window->add_spinner("Speed:", GLUI_SPINNER_INT, &selected_animation_speed_); animation_speed_spinner->set_int_limits(100, 2000); // for he render mode GLUI_Panel *radio_group_panel = glui_window->add_panel("Render Mode"); GLUI_RadioGroup *render_mode_radio_group = glui_window->add_radiogroup_to_panel(radio_group_panel, &selected_render_mode_, 1, (GLUI_Update_CB)updateRenderMode); // put on the GLUI glui_window->add_checkbox("Enable Caption", &is_caption_enabled_, 2, (GLUI_Update_CB)toggleCaptionEnabling); glui_window->add_radiobutton_to_group(render_mode_radio_group, "Ivan's Version"); glui_window->add_radiobutton_to_group(render_mode_radio_group, "Laura's Version"); glui_window->add_button("Demo", 0, (GLUI_Update_CB)startDemoMode); glui_window->add_button("Reset Rotation", 0, (GLUI_Update_CB)resetSceneRotation); glui_window->add_separator(); glui_window->add_button("Quit", 0, (GLUI_Update_CB)exit); glui_window->set_main_gfx_window(main_window); // register the idle callback with GLUI (not with GLUT!) GLUI_Master.set_glutIdleFunc(myGLUTIdleFunc); } Here is the call graph for this function:

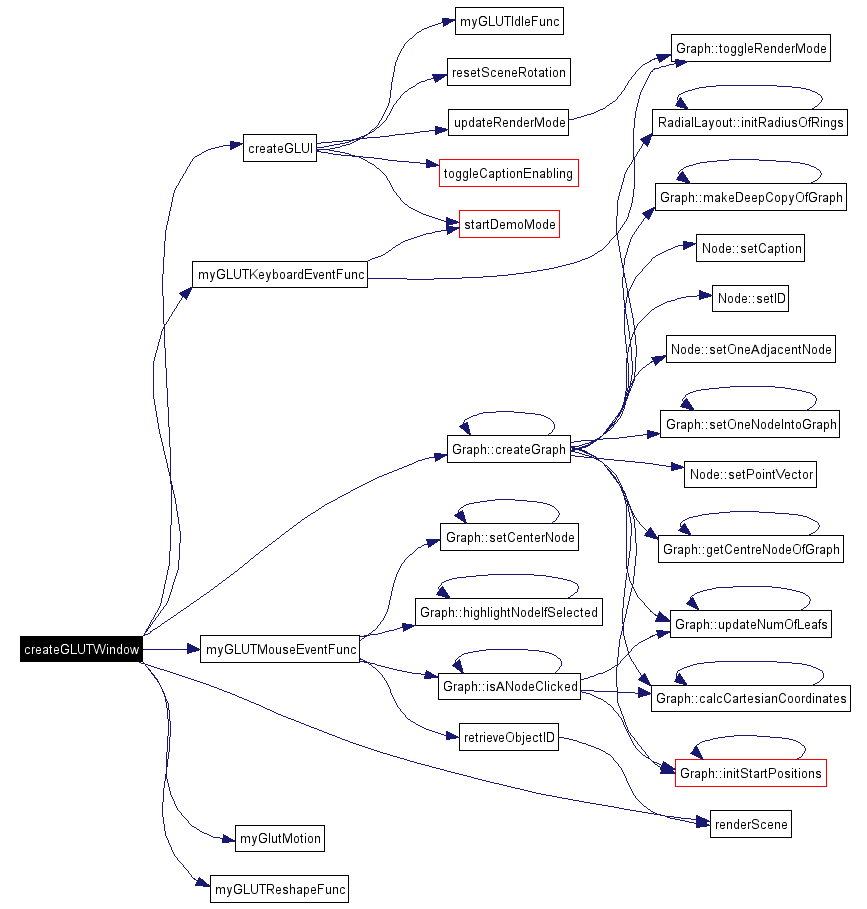

void createGLUTWindow (  Graph *  graph, RadialLayout *  radial_layout, GLuint  screen_width, GLuint  screen_height )

This is the callback function for the GLUT initializations. Parameters: graph  The graph to draw. radial_layout  The radiallayout to draw. screen_width  The screen width. screen_height  The screen height. Definition at line 54 of file GLUTCallbackFunctions.cpp. References createGLUI(), Graph::createGraph(), graph_, main_window, myGLUTKeyboardEventFunc(), myGlutMotion(), myGLUTMouseEventFunc(), myGLUTReshapeFunc(), radial_layout_, renderScene(), screen_height_, and screen_width_. Referenced by main(). { screen_width_ = screen_width <= 0 ? 100 : screen_width; screen_height_ = screen_height <= 0 ? 100 : screen_height; if (graph == NULL) { cerr << "Graph is NULL." << endl; exit(0); } graph_ = graph; if (radial_layout == NULL) { cerr << "Radial Layout is NULL." << endl; exit(0); } radial_layout_ = radial_layout; glutInitDisplayMode(GLUT_RGB | GLUT_DOUBLE | GLUT_DEPTH); glutInitWindowPosition(50, 50); glutInitWindowSize(800, 600); main_window = glutCreateWindow("InfoViz: Animated Radial Tree Exploration"); // assign the GLUT callback functions glutDisplayFunc(renderScene); glutReshapeFunc(myGLUTReshapeFunc); glutKeyboardFunc(myGLUTKeyboardEventFunc); glutMouseFunc(myGLUTMouseEventFunc); glutMotionFunc(myGlutMotion); // create graph graph_->createGraph("Hallo"); // create the GLUI createGLUI(); // run the GLUT main moop and wait for events glutMainLoop(); } Here is the call graph for this function:

void myGLUTIdleFunc (   )

This creates the GLUI for the application. Definition at line 226 of file GLUTCallbackFunctions.cpp. References main_window. Referenced by createGLUI(). { // the current window is undefined during an idle callback; therefore we // need to explicitly change it if necessary if (glutGetWindow() != main_window) { glutSetWindow(main_window); } glutPostRedisplay(); }

void myGLUTKeyboardEventFunc (  unsigned char  key, int  x_pos, int  y_pos )

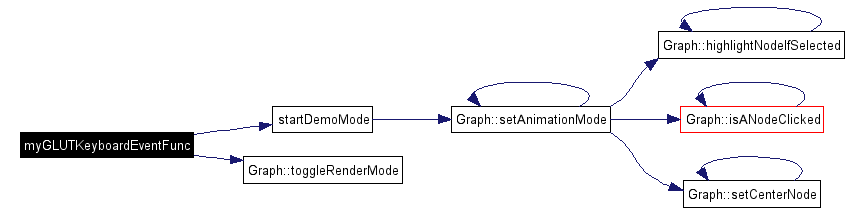

This handles the key board events. Parameters: key  The user-typed key. x_pos  The keyboard's x position. y_pos  The keyboard's y position. Definition at line 289 of file GLUTCallbackFunctions.cpp. References graph_, is_fullscreen_mode_on_, startDemoMode(), and Graph::toggleRenderMode(). Referenced by createGLUTWindow(). { switch(key) { case 27 : case 'q' : exit(0); case GLUT_KEY_F1 : if (!is_fullscreen_mode_on_) { glutFullScreen(); is_fullscreen_mode_on_ = true; } else { glutReshapeWindow(800, 600); is_fullscreen_mode_on_ = false; } break; case 'a' : startDemoMode(); break; case 'm' : graph_->toggleRenderMode(); break; default : break; }; } Here is the call graph for this function:

void myGlutMotion (  int  x_pos, int  y_pos )

This is the callback function for the motions in the scene. Parameters: x_pos  The x position of the viewport. y_pos  The y position of the viewport. Definition at line 407 of file GLUTCallbackFunctions.cpp. References is_left_mouse_button_down_, last_x_pos_, last_y_pos_, screen_height_, screen_width_, x_rotation_, y_rotation_, and z_rotation_. Referenced by createGLUTWindow(), and renderScene(). { if (!is_left_mouse_button_down_) { x_rotation_ += (GLfloat) (y_pos - last_y_pos_); y_rotation_ += (GLfloat) (x_pos - last_x_pos_); last_x_pos_ = x_pos; last_y_pos_ = y_pos; if ((last_x_pos_ == screen_width_ / 2) || (last_y_pos_ == screen_height_ / 2)) { } else { if (((x_pos - screen_width_ / 2) * (last_y_pos_ - screen_height_ / 2) - (last_x_pos_ - screen_width_ / 2) * (y_pos - screen_height_ / 2)) > 0) { z_rotation_ += (GLfloat) ((abs(x_pos - last_x_pos_) + abs(y_pos - last_y_pos_))); } else { z_rotation_ += (GLfloat) (-1*(abs(x_pos - last_x_pos_) + abs(y_pos - last_y_pos_))); } } glutPostRedisplay(); } }

void myGLUTMouseEventFunc (  int  button, int  state, int  x_pos, int  y_pos )

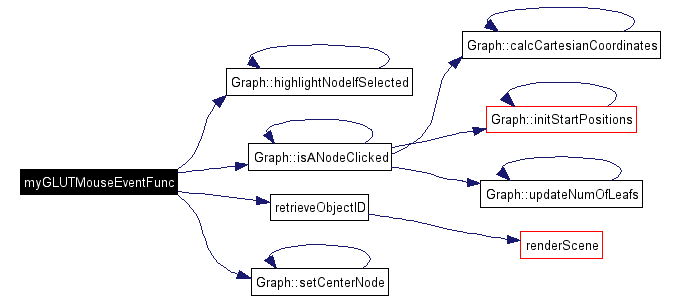

This handles the mouse events. Parameters: button  Holds the flag which mouse button has been clicked. state  Indicates whether the mouse button is up or down. x_pos  The mouse cursor's x position. y_pos  The mouse cursor's y position. Definition at line 327 of file GLUTCallbackFunctions.cpp. References clicked_object_id_, graph_, Graph::highlightNodeIfSelected(), is_animation_running_, is_left_mouse_button_down_, Graph::isANodeClicked(), num_iterations_, retrieveObjectID(), and Graph::setCenterNode(). Referenced by createGLUTWindow(). { if (button == GLUT_LEFT_BUTTON) { cout << x_pos << " " << y_pos << endl; // Here we pass in the cursors X and Y co-ordinates to test // an object under the mouse. clicked_object_id_ = retrieveObjectID(x_pos, y_pos); graph_->highlightNodeIfSelected(clicked_object_id_); if ((graph_->isANodeClicked(clicked_object_id_)) && (is_animation_running_ == false)) { num_iterations_ = 1; is_animation_running_ = true; graph_->setCenterNode(clicked_object_id_); } } if (button == GLUT_LEFT_BUTTON && state == GLUT_DOWN) { is_left_mouse_button_down_ = true; } else// (button == GLUT_LEFT_BUTTON && state == GLUT_UP) { is_left_mouse_button_down_ = false; } } Here is the call graph for this function:

void myGLUTReshapeFunc (  GLint  screen_width, GLint  screen_height )

This reshapes the OpenGL window to specified resolution. Definition at line 241 of file GLUTCallbackFunctions.cpp. Referenced by createGLUTWindow(). { GLfloat width_height_aspect = (GLfloat)screen_width / (GLfloat)screen_height; glViewport(0, 0, screen_width, screen_height); glMatrixMode(GL_PROJECTION); glLoadIdentity(); glutPostRedisplay(); }

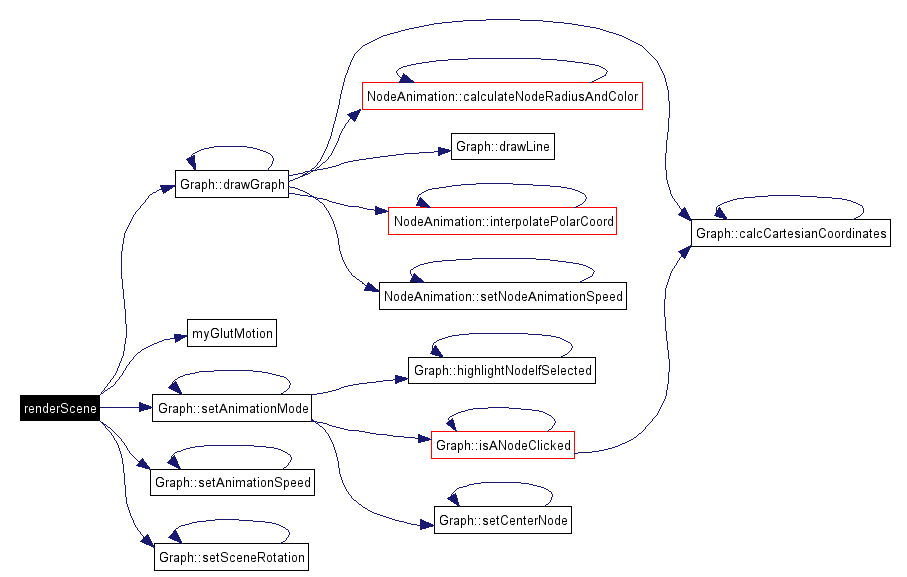

void renderScene (   )

This renders the entire scene into OpenGL. Definition at line 140 of file GLUTCallbackFunctions.cpp. References Graph::drawGraph(), graph_, is_animation_mode_active_, is_animation_running_, is_reset_rotation_, last_x_pos_, last_y_pos_, myGlutMotion(), num_iterations_, radial_layout_, screen_height_, screen_width_, selected_animation_speed_, Graph::setAnimationMode(), Graph::setAnimationSpeed(), Graph::setSceneRotation(), x_rotation_, y_rotation_, and z_rotation_. Referenced by createGLUTWindow(), and retrieveObjectID(). { if ((is_animation_running_ == false) && (is_animation_mode_active_ == true)) { num_iterations_ = 1; is_animation_running_ = true; graph_->setAnimationMode(true); } if (num_iterations_ <= selected_animation_speed_) { ++num_iterations_; } graph_->setAnimationSpeed(&selected_animation_speed_); GLfloat width_height_aspect = (GLfloat)screen_width_ / (GLfloat)screen_height_; glClearColor(1.0f, 1.0f, 1.0f, 1.0f); glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT); //glMatrixMode(GL_PROJECTION); //glLoadIdentity(); glFrustum(-width_height_aspect * 0.04, width_height_aspect * 0.04, -0.04, 0.04, 0.1, 15.0); glMatrixMode( GL_MODELVIEW ); glLoadIdentity(); // reset the view // position view up vector gluLookAt(0, 0, 6, 0, 0, 0, 0, 1, 0); // number of circles GLint num_circles = 10; // radius of the starting circle GLfloat radius = -0.1f; GLUquadricObj *qobj; qobj = gluNewQuadric(); if (is_reset_rotation_ == true) { glRotatef(0.0f, 0.0f, 1.0f, 0.0f); glRotatef(0.0f, 1.0f, 0.0f, 0.0f); glRotatef(0.0f, 0.0f, 0.0f, 1.0f); is_reset_rotation_ = false; y_rotation_ = 0.0f; x_rotation_ = 0.0f; last_y_pos_ = 0.0f; last_x_pos_ = 0.0f; myGlutMotion(last_x_pos_, last_y_pos_); } else { glRotatef(y_rotation_, 0.0f, 1.0f, 0.0f); glRotatef(x_rotation_, 1.0f, 0.0f, 0.0f); glRotatef(0.0f, 0.0f, 0.0f, 1.0f); } glHint(GL_LINE_SMOOTH_HINT, GL_NICEST); glEnable(GL_LINE_SMOOTH); gluQuadricNormals(qobj, GLU_SMOOTH); glDisable(GL_BLEND); radial_layout_ -> setNumberDisplayedRings(num_circles); radial_layout_ -> setRadiusOfRing(1, radius); radial_layout_ -> renderRadialLayout(qobj); glInitNames(); glPushName(0); graph_->setSceneRotation(x_rotation_, y_rotation_, z_rotation_); graph_->drawGraph(qobj); glColor3f(1.0f, 1.0f, 1.0f); glDisable(GL_LINE_SMOOTH); // swap buffers glutSwapBuffers(); gluDeleteQuadric(qobj); } Here is the call graph for this function:

void resetSceneRotation (   )

This resets the rotation of the entire scene. Definition at line 445 of file GLUTCallbackFunctions.cpp. References is_reset_rotation_. Referenced by createGLUI(). { is_reset_rotation_ = true; }

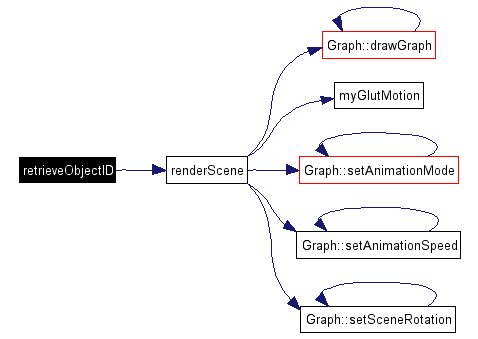

int retrieveObjectID (  int  x_coord, int  y_coord )

This finds the object which was clicked by the user given the x, y coordinates. Parameters: x_coord  The x coordinate of the viewport. y_coord  The y coordinate of the viewport. Definition at line 362 of file GLUTCallbackFunctions.cpp. References renderScene(), screen_height_, and screen_width_. Referenced by myGLUTMouseEventFunc(). { int objectsFound = 0; int viewportCoords[4] = {0}; unsigned int selectBuffer[1024] = {0}; glSelectBuffer(1024, selectBuffer); glGetIntegerv(GL_VIEWPORT, viewportCoords); glMatrixMode(GL_PROJECTION); glPushMatrix(); glRenderMode(GL_SELECT); glLoadIdentity(); gluPickMatrix(x_coord, viewportCoords[3] - y_coord, 2, 2, viewportCoords); gluPerspective(45.0f,(float)screen_width_/(float)screen_height_,0.1f,150.0f); glMatrixMode(GL_MODELVIEW); renderScene(); objectsFound = glRenderMode(GL_RENDER); glMatrixMode(GL_PROJECTION); glPopMatrix(); glMatrixMode(GL_MODELVIEW); if (objectsFound > 0) { unsigned int lowestDepth = selectBuffer[1]; int selectedObject = selectBuffer[3]; // Return the selected object return selectedObject; } return 0; } Here is the call graph for this function:

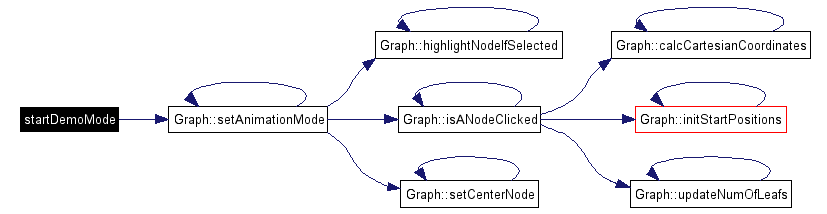

void startDemoMode (   )

This starts the demo mode. Definition at line 267 of file GLUTCallbackFunctions.cpp. References graph_, is_animation_mode_active_, is_animation_running_, num_iterations_, and Graph::setAnimationMode(). Referenced by createGLUI(), and myGLUTKeyboardEventFunc(). { if (is_animation_mode_active_ == false) { num_iterations_ = 1; is_animation_mode_active_ = true; is_animation_running_ = true; graph_->setAnimationMode(true); } else { is_animation_mode_active_ = false; } } Here is the call graph for this function:

void toggleCaptionEnabling (   )

This toggles the caption of the nodes. If enablen the caption's will be displayed. Definition at line 455 of file GLUTCallbackFunctions.cpp. References graph_, and Graph::toggleCaptionMode(). Referenced by createGLUI(). { graph_->toggleCaptionMode(); } Here is the call graph for this function:

void updateRenderMode (   )

This updates the rendermode. Definition at line 258 of file GLUTCallbackFunctions.cpp. References graph_, and Graph::toggleRenderMode(). Referenced by createGLUI(). { graph_->toggleRenderMode(); } Here is the call graph for this function:

---
