Scene Class Reference

Encapsulates the Rendering Engine, holds a complete scene and it's assets. More...

#include <scene.hpp>

Public Types
enum	{   SentinelPre = 0, SentinelDraw = 1000, SentinelDrawPickable = 1500, SentinelPost = 2000,   SentinelUnordered = 3000 }
typedef std::map< std::size_t, std::shared_ptr< SceneObject > >::const_iterator	ConstIterator

Public Member Functions
	Scene (GLFWwindow *window)
	~Scene ()
void	init (const std::string &scenePath)
void	clearRender ()
void	remRender (std::shared_ptr< SceneObject > &object)
void	getRender (size_t idx, std::shared_ptr< SceneObject > &object) const
size_t	pushRender (std::shared_ptr< SceneObject > &object, size_t idx=SentinelUnordered)
size_t	insertRender (std::shared_ptr< SceneObject > &object, size_t idx=SentinelUnordered)
Shader *	getShader (const std::string &name) const
void	addShader (const std::string &name, std::unique_ptr< Shader > &shader)
void	changeRenderShader (const std::string &from, const std::string &to)
GLFWwindow *	getWindow () const
std::shared_ptr< Light >	getLight () const
std::shared_ptr< Camera >	getCamera () const
std::shared_ptr< SceneObject >	getRootNode () const
std::shared_ptr< CubeMapObject >	getCubeMapObject () const
std::shared_ptr< LightCamera >	getLightCam () const
std::shared_ptr< SunVolumetric >	getSunVolumetric () const
std::shared_ptr< MouseSemantics >	getMouseSemantics () const
std::shared_ptr< SelectorBase >	getActiveSelector () const
std::shared_ptr< Legend >	getLegend () const
std::shared_ptr< BubbleCursor >	getBubbleCursor () const
bool	getObject (const std::string &name, std::shared_ptr< SceneObject > &object, size_t pos=1) const
void	setWindow (GLFWwindow *val)
void	setLight (std::shared_ptr< Light > val)
void	setCamera (std::shared_ptr< Camera > val)
void	setRootNode (std::shared_ptr< SceneObject > root)
void	setCubeMapObject (std::shared_ptr< CubeMapObject > val)
void	setLightCam (std::shared_ptr< LightCamera > val)
void	setSunVolumetric (std::shared_ptr< SunVolumetric > val)
void	setMouseSemantics (std::shared_ptr< MouseSemantics > val)
void	setActiveSelector (std::shared_ptr< SelectorBase > val)
void	setLegend (std::shared_ptr< Legend > val)
void	setBubbleCursor (std::shared_ptr< BubbleCursor > val)
ConstIterator	end () const
ConstIterator	begin () const
ConstIterator	end (size_t idx) const
ConstIterator	begin (size_t idx) const

Static Public Member Functions
static std::shared_ptr< SceneObject >	get (const ConstIterator &it)

Private Member Functions
bool	getObjectRecursive (const std::string &name, std::shared_ptr< SceneObject > &object, size_t &pos) const

Private Attributes
GLFWwindow *	window
std::shared_ptr< Light >	light
std::shared_ptr< Camera >	camera
std::shared_ptr< CubeMapObject >	cmObject
std::shared_ptr< LightCamera >	lightCam
std::shared_ptr< SunVolumetric >	sunVolumetric
std::shared_ptr< MouseSemantics >	mouseSemantics
std::shared_ptr< SelectorBase >	activeSelector
std::shared_ptr< Legend >	legend
std::shared_ptr< BubbleCursor >	bubbleCursor
std::shared_ptr< SceneObject >	rootNode
std::map< std::string, std::unique_ptr< Model > >	models
std::map< std::string, std::unique_ptr< Shader > >	shaders
std::map< std::string, std::unique_ptr< Texture > >	textures
std::map< std::size_t, std::shared_ptr< SceneObject > >	renderList

Friends
class	Debug
class	AssimpLoader

Detailed Description

Encapsulates the Rendering Engine, holds a complete scene and it's assets.

Author

Adam Felix

Design

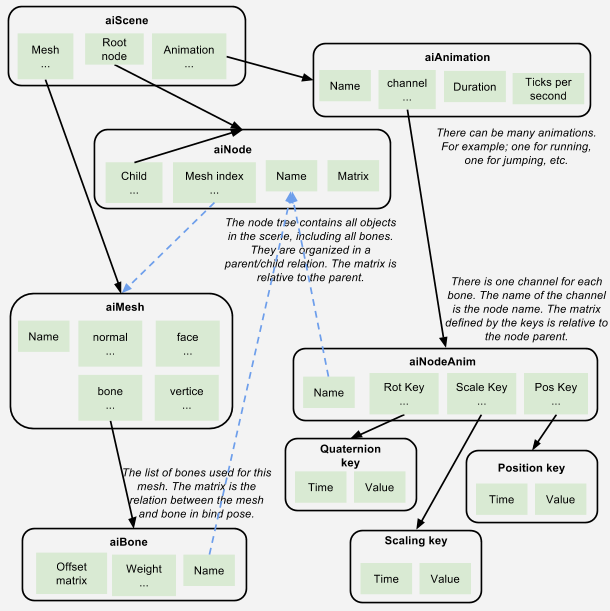

The rendering engine has the same hierarchy as the Assimp aiScene class. The Assimp Scene Structure can be seen on the following image.

http://ephenationopengl.blogspot.co.at

The rendering engine is designed in parent-child relation. Each SceneObject holds it's local model matrix. In order to compute the global model matrix of an object, the parents must be traversed until the root. This way the camera is also the part of the scene, therefore camera animation can be handled. Also animated objects like the tank can be displayed.

Each SceneObject (Assimp:aiNode) has a corresponding aiNodeAnim, which is accessible through the name. For convenience, the number of Quaternion, Position and Scaling and their time at the same index must be the same. The time is a measurement since the start of the global scene animation. The local model matrices are computed using the equation M = T * R * S, where the Quaternions, Position and Scalings are interpolated values between two T, R, S from aiNodeAnim. The SceneObject class has a virtual animate() function, which takes the time since start as an argument. This function takes the $i^{th}$ local model matrix from the animation, where $M_i.time < time <= M_{i+1}.time$ and sets it as the current local model matrix. The animate() function was chosen to be virtual, because special objects might need special calls, for example the camera class needs to compute the view matrix on every model matrix change.

The models are also loaded using the Assimp library. The material information is stored in the model object. Images are loaded using the OpenCV library and stored in a texture object. Multiple SceneObjects can use the same model or texture objects. Shader loading is redesigned to be able to link together arbitrary number of shaders of different types.

Implementation

The assets are stored as a std::map of std::unique_ptr. If needed they can be searched by name, but objects can have direct access through raw pointers. This design does not allow easy swapping of assets between different scenes. The SceneObjects are stored in parent-child hierarchy, therefore only the root node is stored. For rendering purpose, a render list is stored as a std::map. Objects can be pushed or inserted according to indices, and can be removed with pointers. The SceneObjects are stored as std::shared_ptr. This might be a performance decrease, because of the atomic increments, in the current design where there is no multithreading.

Member Typedef Documentation

typedef std::map<std::size_t, std::shared_ptr<SceneObject> >::const_iterator Scene::ConstIterator

Member Enumeration Documentation

anonymous enum

Enumerator
SentinelPre
SentinelDraw
SentinelDrawPickable
SentinelPost
SentinelUnordered

Constructor & Destructor Documentation

Scene::Scene

(

GLFWwindow *

window

)

Scene::~Scene

(

)

Member Function Documentation

void Scene::addShader	(	const std::string &	name,
		std::unique_ptr< Shader > &	shader
	)

ConstIterator Scene::begin ( ) const

inline

ConstIterator Scene::begin ( size_t  idx ) const

inline

void Scene::changeRenderShader	(	const std::string &	from,
		const std::string &	to
	)

void Scene::clearRender

(

)

ConstIterator Scene::end ( ) const

inline

ConstIterator Scene::end ( size_t  idx ) const

inline

static std::shared_ptr<SceneObject> Scene::get ( const ConstIterator &  it )

inlinestatic

std::shared_ptr<SelectorBase> Scene::getActiveSelector ( ) const

inline

std::shared_ptr<BubbleCursor> Scene::getBubbleCursor ( ) const

inline

std::shared_ptr<Camera> Scene::getCamera ( ) const

inline

std::shared_ptr<CubeMapObject> Scene::getCubeMapObject ( ) const

inline

std::shared_ptr<Legend> Scene::getLegend ( ) const

inline

std::shared_ptr<Light> Scene::getLight ( ) const

inline

std::shared_ptr<LightCamera> Scene::getLightCam ( ) const

inline

std::shared_ptr<MouseSemantics> Scene::getMouseSemantics ( ) const

inline

bool Scene::getObject	(	const std::string &	name,
		std::shared_ptr< SceneObject > &	object,
		size_t	pos = 1
	)		const

bool Scene::getObjectRecursive ( const std::string &  name, std::shared_ptr< SceneObject > &  object, size_t &  pos  ) const

private

void Scene::getRender	(	size_t	idx,
		std::shared_ptr< SceneObject > &	object
	)		const

std::shared_ptr<SceneObject> Scene::getRootNode ( ) const

inline

Shader * Scene::getShader

(

const std::string &

name

)

const

std::shared_ptr<SunVolumetric> Scene::getSunVolumetric ( ) const

inline

GLFWwindow* Scene::getWindow ( ) const

inline

void Scene::init

(

const std::string &

scenePath

)

size_t Scene::insertRender	(	std::shared_ptr< SceneObject > &	object,
		size_t	idx = SentinelUnordered
	)

size_t Scene::pushRender	(	std::shared_ptr< SceneObject > &	object,
		size_t	idx = SentinelUnordered
	)

void Scene::remRender

(

std::shared_ptr< SceneObject > &

object

)

void Scene::setActiveSelector ( std::shared_ptr< SelectorBase >  val )

inline

void Scene::setBubbleCursor ( std::shared_ptr< BubbleCursor >  val )

inline

void Scene::setCamera ( std::shared_ptr< Camera >  val )

inline

void Scene::setCubeMapObject ( std::shared_ptr< CubeMapObject >  val )

inline

void Scene::setLegend ( std::shared_ptr< Legend >  val )

inline

void Scene::setLight ( std::shared_ptr< Light >  val )

inline

void Scene::setLightCam ( std::shared_ptr< LightCamera >  val )

inline

void Scene::setMouseSemantics ( std::shared_ptr< MouseSemantics >  val )

inline

void Scene::setRootNode ( std::shared_ptr< SceneObject >  root )

inline

void Scene::setSunVolumetric ( std::shared_ptr< SunVolumetric >  val )

inline

void Scene::setWindow ( GLFWwindow *  val )

inline

Friends And Related Function Documentation

friend class AssimpLoader

friend

friend class Debug

friend

Member Data Documentation

std::shared_ptr<SelectorBase> Scene::activeSelector

private

std::shared_ptr<BubbleCursor> Scene::bubbleCursor

private

std::shared_ptr<Camera> Scene::camera

private

std::shared_ptr<CubeMapObject> Scene::cmObject

private

std::shared_ptr<Legend> Scene::legend

private

std::shared_ptr<Light> Scene::light

private

std::shared_ptr<LightCamera> Scene::lightCam

private

std::map<std::string, std::unique_ptr<Model> > Scene::models

private

std::shared_ptr<MouseSemantics> Scene::mouseSemantics

private

std::map<std::size_t, std::shared_ptr<SceneObject> > Scene::renderList

private

std::shared_ptr<SceneObject> Scene::rootNode

private

std::map<std::string, std::unique_ptr<Shader> > Scene::shaders

private

std::shared_ptr<SunVolumetric> Scene::sunVolumetric

private

std::map<std::string, std::unique_ptr<Texture> > Scene::textures

private

GLFWwindow* Scene::window

private

---

The documentation for this class was generated from the following files:

• C:/Users/FLx/Selektron/include/scene.hpp
• C:/Users/FLx/Selektron/src/scene.cpp
