Base class for selectors. More...

#include <selectorBase.hpp>

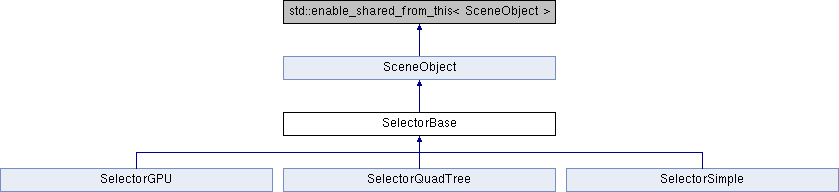

Inheritance diagram for SelectorBase:

Classes
class	EffectObject

Public Member Functions
	SelectorBase (const std::string &name, Scene *scene)

	~SelectorBase ()

void	reset ()
	set up EffectObject More...

void	draw () const
	draw selectable object ids into a texture More...

void	update (double deltaT)
	empty function More...

virtual void	changeMode ()=0
	debug, change mode More...

virtual void	pickObject (const glm::ivec2 &mouse)=0
	select closest object to mouse More...

int	getBufferWidth () const

int	getBufferHeight () const

size_t	getLastSelected () const

size_t	getLastDistance () const

Public Member Functions inherited from SceneObject
	SceneObject (std::shared_ptr< SceneObject > &effectParent, const glm::mat4 &modelMatrix=glm::mat4(1))

	SceneObject (const std::string &name, Scene scene=0, Model model=0, const glm::mat4 &modelMatrix=glm::mat4(1))

virtual	~SceneObject ()

Model *	getModel () const

Shader *	getShader () const

glm::mat4	getModelMatrix () const

glm::mat4	getGlobalModelMatrix () const

std::string	getName () const

std::shared_ptr< SceneObject >	getParent () const

void	setAnimationTime (double time)

bool	setAnimation (const Animation &anim)

bool	delChild (size_t idx)

bool	getChild (size_t idx, std::shared_ptr< SceneObject > &child) const

bool	addChild (std::shared_ptr< SceneObject > &child)

bool	remEffect (const std::string &name)

SceneObject *	getEffect (const std::string &name) const

bool	addEffect (const std::string &name, std::unique_ptr< SceneObject > &effect)

bool	doNotRender ()

bool	getIsVolSun ()

virtual bool	animate (double time)

virtual void	setShader (Shader *val)

Protected Attributes
int	width
	width of screen More...

int	height
	height of screen More...

GLuint	idBuffer
	frame buffer More...

GLuint	idTexture
	texture of rendered object indices More...

size_t	lastDistance
	distance after pickObject() call More...

size_t	lastSelected
	selected object id after pickObject() call More...

Protected Attributes inherited from SceneObject
GLuint	vao

Scene *	scene

Model *	model

Shader *	shader

glm::mat4	modelMatrix

std::string	name

std::weak_ptr< SceneObject >	parent

std::vector< std::shared_ptr< SceneObject > >	childs

std::map< std::string, std::unique_ptr< SceneObject > >	effectChilds

size_t	animIDX

Animation	animation

bool	norender

bool	isVolSun

Additional Inherited Members
Public Types inherited from SceneObject
typedef std::vector< std::pair< double, glm::mat4 > >	Animation

Detailed Description

Base class for selectors.

Responsible for pick buffer drawing and interface.

See also: SelectorQuadTree

Author: Adam

Constructor & Destructor Documentation

SelectorBase::SelectorBase	(	const std::string &	name,
		Scene *	scene
	)

Todo:: , allow resize?

SelectorBase::~SelectorBase ( )

Member Function Documentation

virtual void SelectorBase::changeMode ( )

pure virtual

debug, change mode

Implemented in SelectorQuadTree, SelectorGPU, and SelectorSimple.

void SelectorBase::draw ( ) const

virtual

draw selectable object ids into a texture

Reimplemented from SceneObject.

int SelectorBase::getBufferHeight ( ) const

inline

int SelectorBase::getBufferWidth ( ) const

inline

size_t SelectorBase::getLastDistance ( ) const

inline

size_t SelectorBase::getLastSelected ( ) const

inline

virtual void SelectorBase::pickObject ( const glm::ivec2 & mouse )

pure virtual

select closest object to mouse

Implemented in SelectorQuadTree, SelectorGPU, and SelectorSimple.

void SelectorBase::reset ( )

virtual

set up EffectObject

Todo:: Add instanced effect.

Reimplemented from SceneObject.

void SelectorBase::update ( double deltaT )

virtual

empty function

Reimplemented from SceneObject.

Reimplemented in SelectorQuadTree.

Member Data Documentation

int SelectorBase::height

protected

height of screen

GLuint SelectorBase::idBuffer

protected

frame buffer

GLuint SelectorBase::idTexture

protected

texture of rendered object indices

size_t SelectorBase::lastDistance

protected

distance after pickObject() call

size_t SelectorBase::lastSelected

protected

selected object id after pickObject() call

int SelectorBase::width

protected

width of screen

The documentation for this class was generated from the following files:

C:/Users/FLx/Selektron/include/selectorBase.hpp
C:/Users/FLx/Selektron/src/selectorBase.cpp
